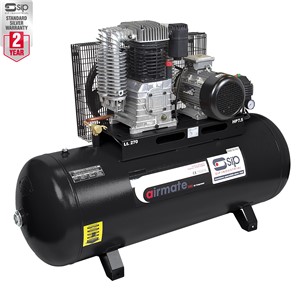

SIP ISBD5.5/270 Industrial Electric Compressor

06289

SIP ISBD5.5/270 Industrial Electric Compressor
06289

The SIP ISBD5.5/270 270ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built to last and designed for consistently high performance plus superior compressed air production. Fitted with large interstage coolers, this compressor provides cooler air ideal for a variety of demanding environments.

A must-have premium compressor for heavy-duty industrial applications.

KEY FEATURES

  •  Oil-lubricated industrial-grade belt-driven compressor
  •  Large interstage coolers for cooler air and reduced moisture
  •  Long-stroke cast iron cylinders for slower running and longer life
  •  Robust valve plate; individual valves for efficient performance
  •  SIP 10-Year Anti-Corrosion Receiver Warranty

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP ISBD5.5/270 270ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built for hard-wearing durability and designed for consistently high performance, plus superior compressed air production perfect for a range of demanding industrial applications.

Large interstage coolers provide high-quality, cooler air with reduced moisture and better pump temperature control. Meanwhile, an industrial-grade 3-phease motor ensures heavy-duty operation at all times, as do the long-stroke cast iron cylinders.

Each ISBD5.5/270 Industrial Electric Compressor comes with an SIP 10-Year Anti-Corrosion Receiver Warranty as standard for added peace-of-mind.

  • Oil-lubricated belt-driven compressor with 400v 3-PHASE motor
  • Heavy-duty pump ideal for prolonged and demanding industrial applications
  • Large interstage coolers for high-quality, cooler air, reduced moisture and pump temperature control
  • Long-stroke cast iron cylinders for slower running and increased pump life
  • Robust valve plate with individual valves for efficient performance
  • Supplied with heavy-duty anti-vibration mounts
  • SIP 10-Year Anti-Corrosion Receiver Warranty
  • SIP 2-Year Standard Silver Warranty
  • Manufactured in Italy

Technical Information

ITEM NO. 06289
Input Supply: 400v (20A) 3-PHASE
Motor Power: 5.5hp (4.1kW)
Receiver Size: 270ltr
Piston Displacement: 23.50CFM (666ltr/min)
Free Air Delivery (FAD): 15.50CFM (439ltr/min)
Max. Air Pressure: 160psi (11bar)
Working Speed: 1290rpm
No. of Cylinders: 2 cylinders
No. of Stages: 2 stages
Net Weight: 166.00kg
Gross Weight:
Product Dimensions:
Packaged Dimensions: 1340(H) x 1640(W) x 560mm(D)
