SIP 12" Sliding Compound Mitre Saw with Laser

01504

Click on image to enlarge

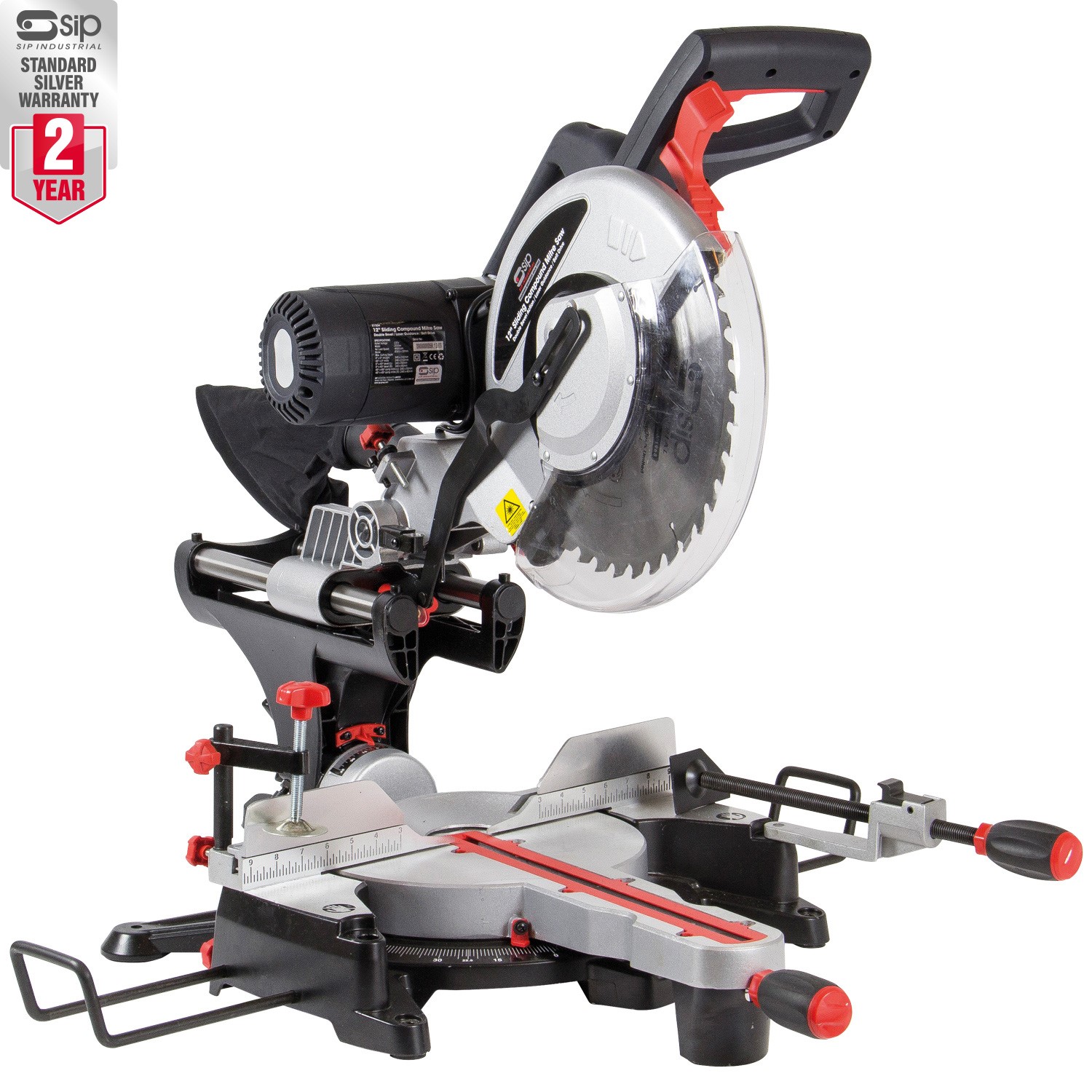

SIP 12" Sliding Compound Mitre Saw with Laser

01504

The SIP 12" Sliding Compound Mitre Saw with Laser utilises a versatile double bevel action of 0° to 45° left to right, as well as a high torque belt-driven motor for powerful performance and smoother, quieter operation.

Designed for home, trade, and professional woodwork applications.

KEY FEATURES

Ø 305mm x 30mm bore x 40TCT quality saw blade
Belt-driven motor for smooth and quiet operation
Heavy-duty rotating table with multiple preset stops
Adjustable depth stop for tenoning and trenching tasks
-45° / 0° / +45° mitre range for all applications

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 12" Sliding Compound Mitre Saw with Laser utilises a versatile double bevel action of 0° to 45° left to right, as well as a high torque belt-driven motor for powerful performance and smoother, quieter operation.

Browse SIP WOODWORK for more woodworking and woodturning essentials.

Ø 305mm x 30mm bore x 40TCT quality saw blade
-45° / 0° / +45° mitre range for all applications

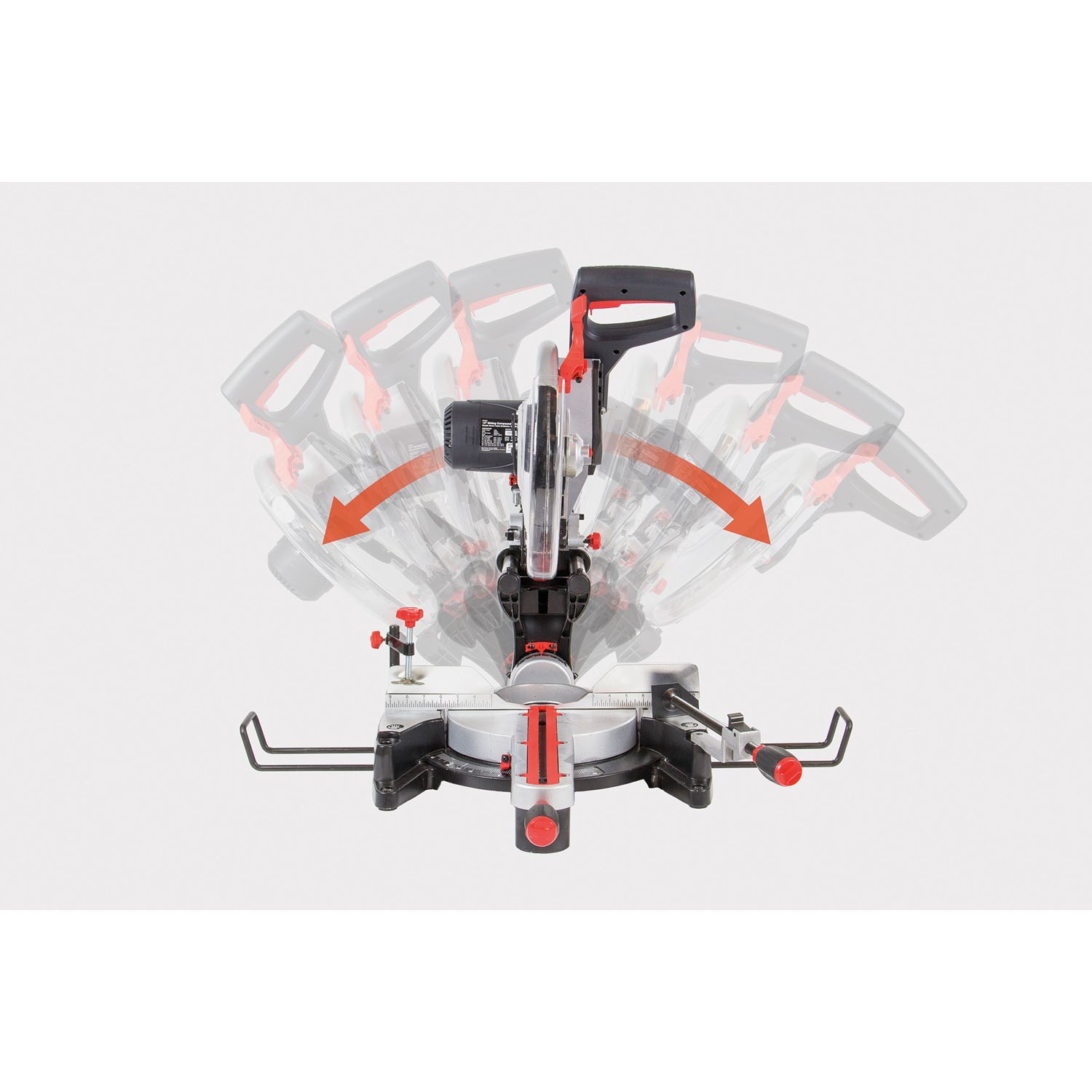

Double bevel function for 45° both left and right
Belt-driven high torque motor for smoother, quieter operation
Heavy-duty versatile rotating table with multiple preset stops
Adjustable depth stop for tenoning and trenching applications
Automatic retracting lower blade guard for added safety
SIP 2-Year Standard Silver Warranty

Product Video

Technical Information

ITEM NO.	01504
Input Supply:	230v (13A)
Motor Power:	2kW (2.7hp)
Mitre Range:	-45° / 0° / +45°
Max. Cutting Capacity:	Straight; 00° x 45°: 340 x 102mm Mitre; 45° x 00°: 240 x 102mm L. Mitre; 45° x 45°: 240 x 55mm R. Mitre; 45° x 45°: 240 x 40mm L. Bevel; 00° x 45°: 340 x 55mm R. Bevel; 00° x 45°: 340 x 40mm
Blade Diameter:	Ø 305mm
Blade Bore Size:	30mm
Blade Speed:	4500rpm
Net Weight:	21.00kg
Gross Weight:	21.00kg
Product Dimensions:	855(H) x 730(W) x 845mm(D)
Packaged Dimensions:	540(H) x 920(W) x 580mm(D)
