SIP Professional Tilting Spindle Moulder

01456

SIP Professional Tilting Spindle Moulder01456SIP Professional Tilting Spindle MoulderSIP Professional Tilting Spindle MoulderSIP Professional Tilting Spindle MoulderSIP Professional Tilting Spindle MoulderSIP Professional Tilting Spindle MoulderSIP Professional Tilting Spindle Moulder
01456
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

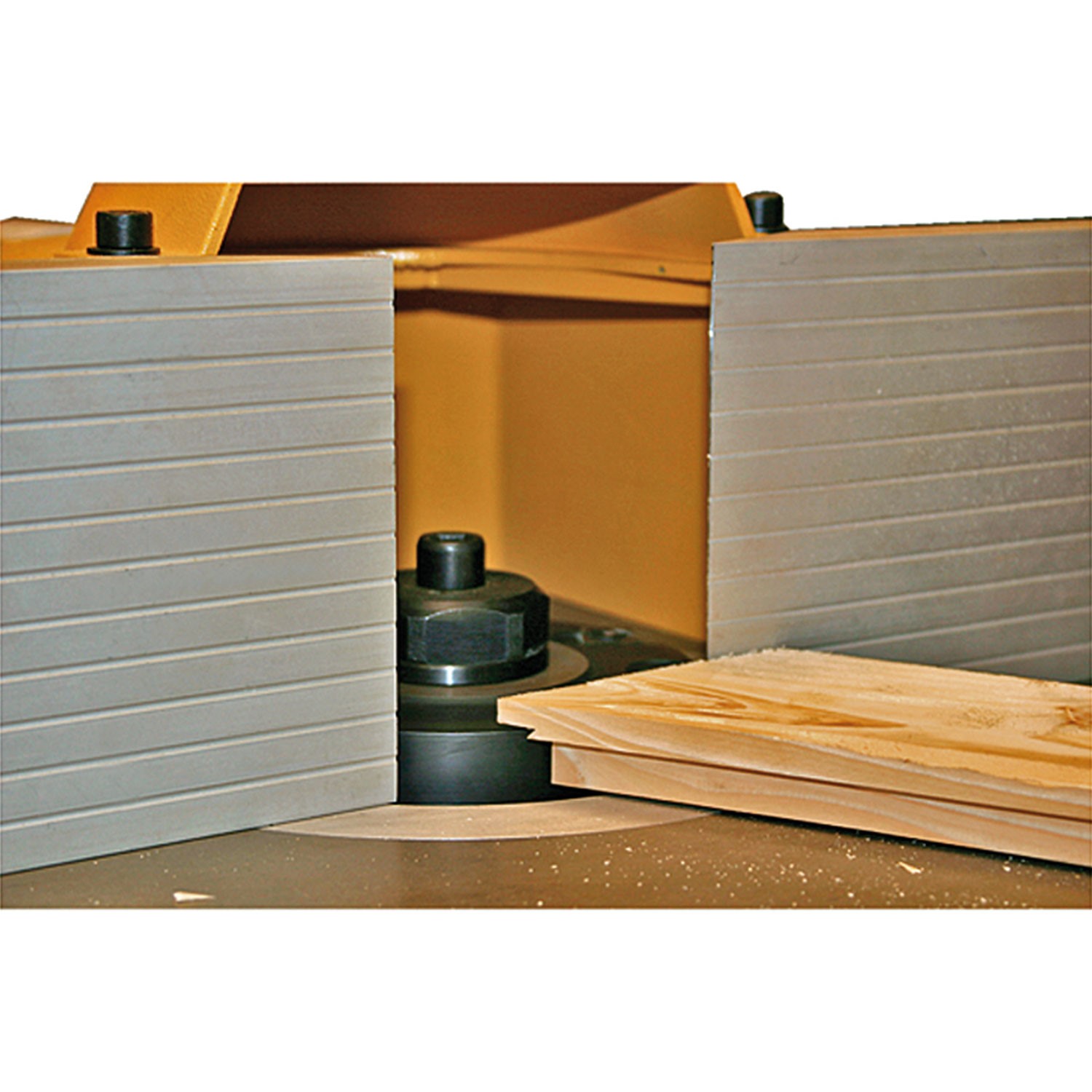

The SIP Professional Tilting Spindle Moulder offers powerful performance in shaping, profiling, and machining, accommodating rebates, grooves, and much more on wood edges, with tilting angles providing increased versatility ideal for all demanding tasks.

Designed for home, trade, and professional woodwork applications.

KEY FEATURES

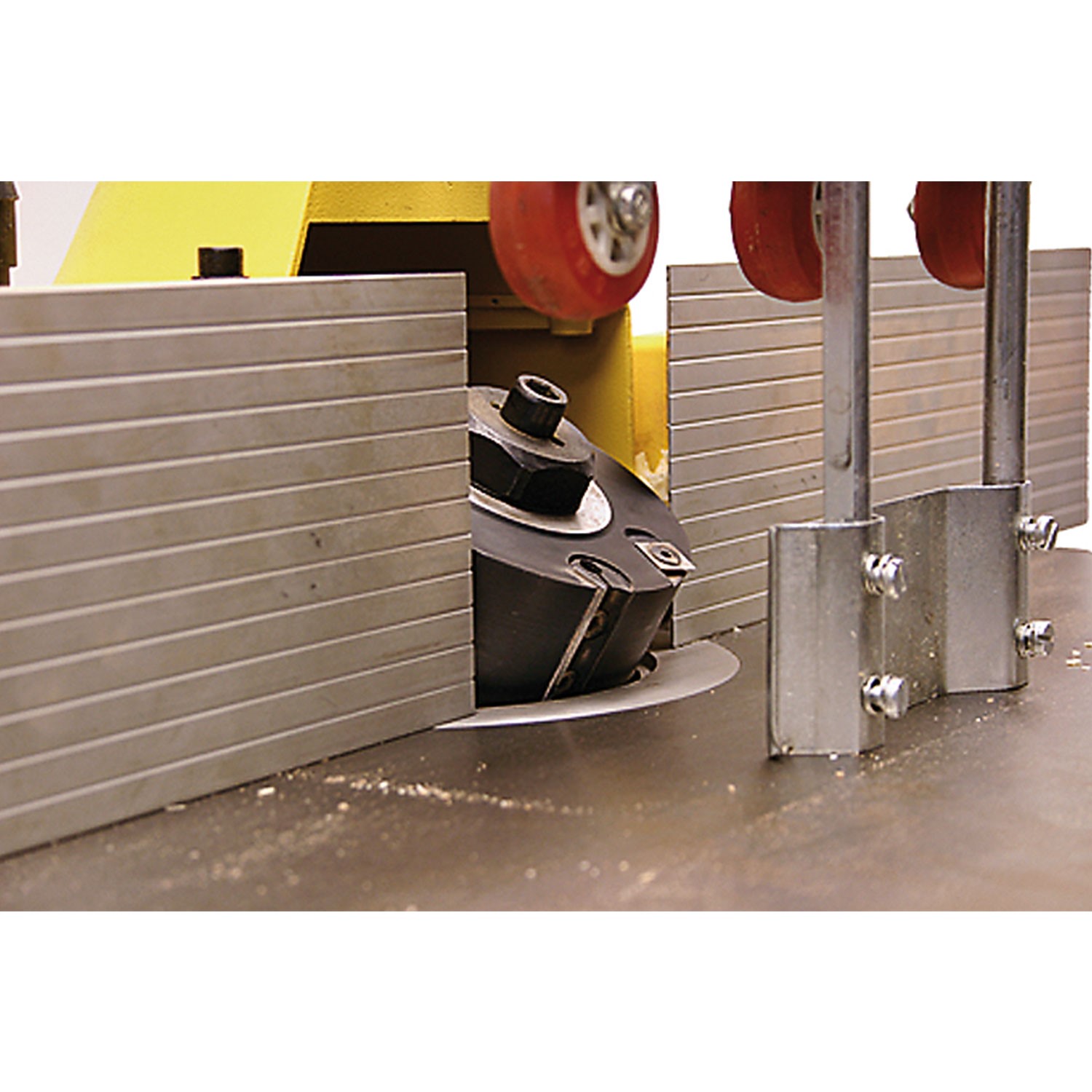

  • Versatile -10° to +30° spindle tilting shaft angle
  • Comfortable working height with cast iron work table
  • 4 powerful working speeds to accommodate all demands
  • Low speed for use with supplied sanding bobbin
  • Integrated NVR switch for added safety

SIP 2-Year Standard Silver Warranty | Find out more

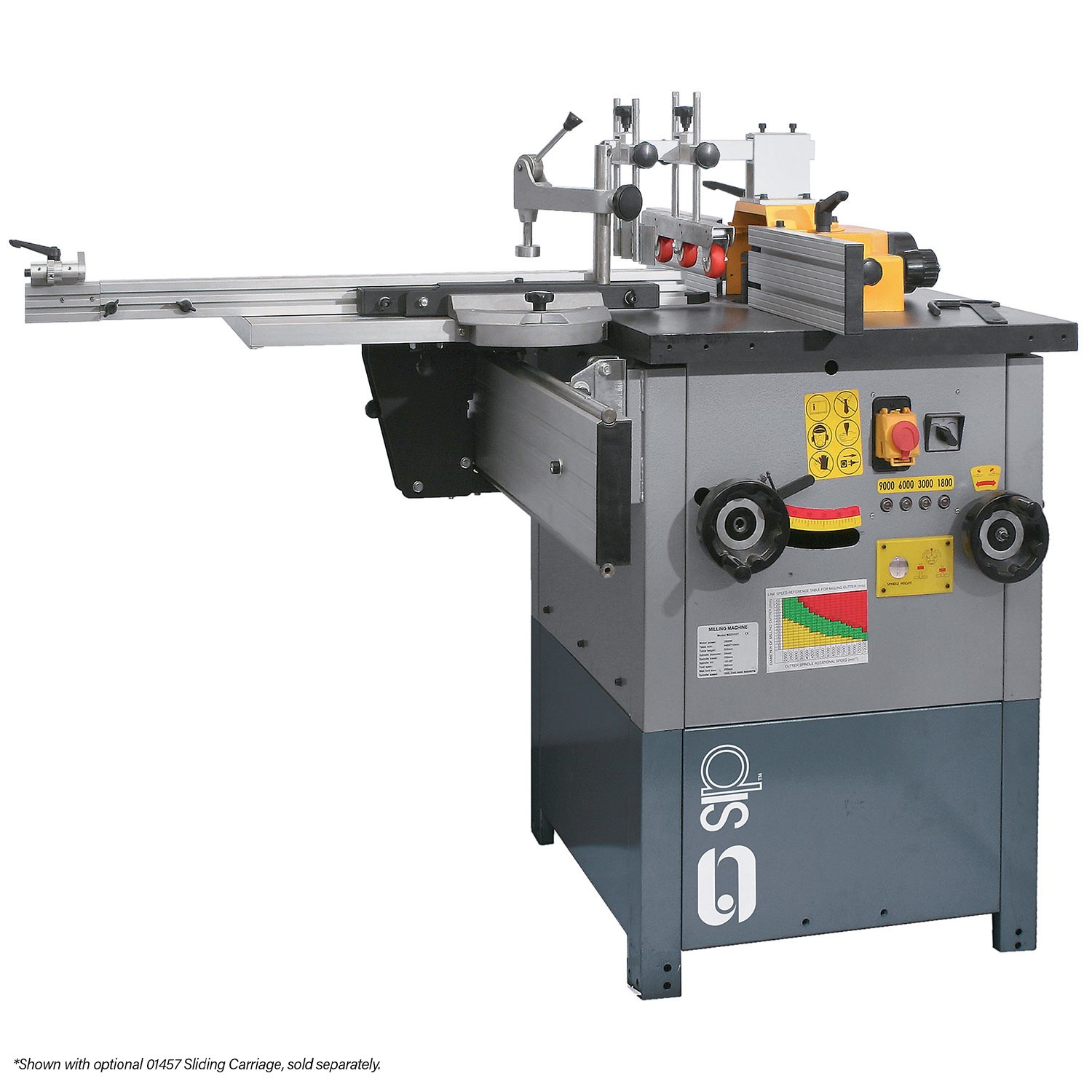

Machine shown with optional SIP Sliding Carriage (01457).

Full Specification

The SIP Professional Tilting Spindle Moulder offers powerful performance in shaping, profiling, and machining, accommodating rebates, grooves, and much more on wood edges, with tilting angles providing increased versatility ideal for all demanding tasks.

Browse SIP WOODWORK for more woodworking and woodturning essentials.

  • Powerful induction motor for heavy-duty performance
  • Versatile -10° to +30° spindle tilting shaft angle
  • Comfortable 900mm unit height with large 710mm x 640mm work surface designed from high-quality and durable cast iron
  • Table is predrilled for power feed unit acceptance

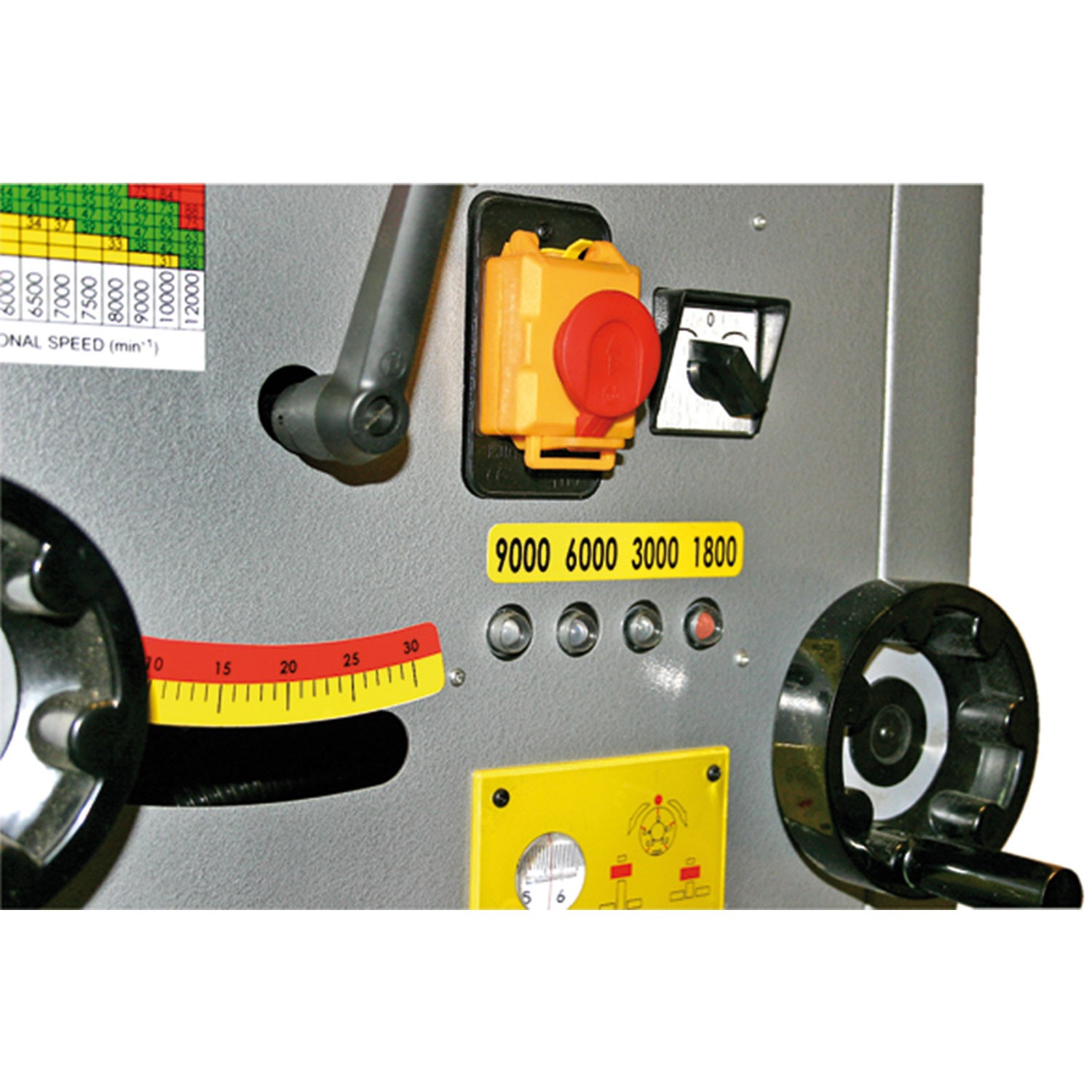

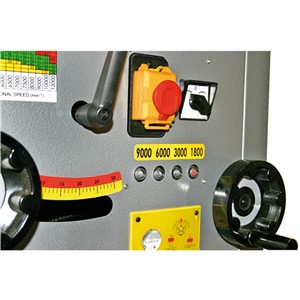

  • 4 powerful working speeds to accommodate all demands

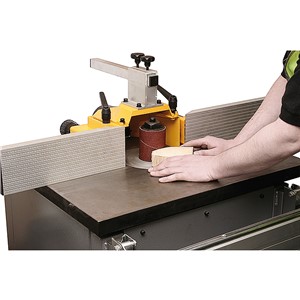

  • Low speed for use with supplied sanding bobbin
  • Integrated NVR switch for added safety
  • SIP 2-Year Standard Silver Warranty

Machine shown with optional SIP Sliding Carriage (01457).

Product Video



Technical Information

ITEM NO. 01456
Input Supply: 230v (16A)
Motor Power: 2.8kW (3.75hp)
Spindle Speeds: 4 speeds;
1800rpm
3000rpm
6000rpm
9000rpm
Spindle Diameter: Ø 30mm
Spindle Travel: 100mm
Max. Tool Diameter: Ø 200mm
Table Opening: 200mm
Table Size: 710mm x 640mm
Spindle Tilting: -10° - +30°
Net Weight: 170.00kg
Gross Weight: 188.00kg
Product Dimensions:
Packaged Dimensions: 700(H) x 760(W) x 690mm(D)
No documents available.

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.
