NARDI EXTREME MP 9HP 500ltr Compressor with Panel

EXTMP50090CP

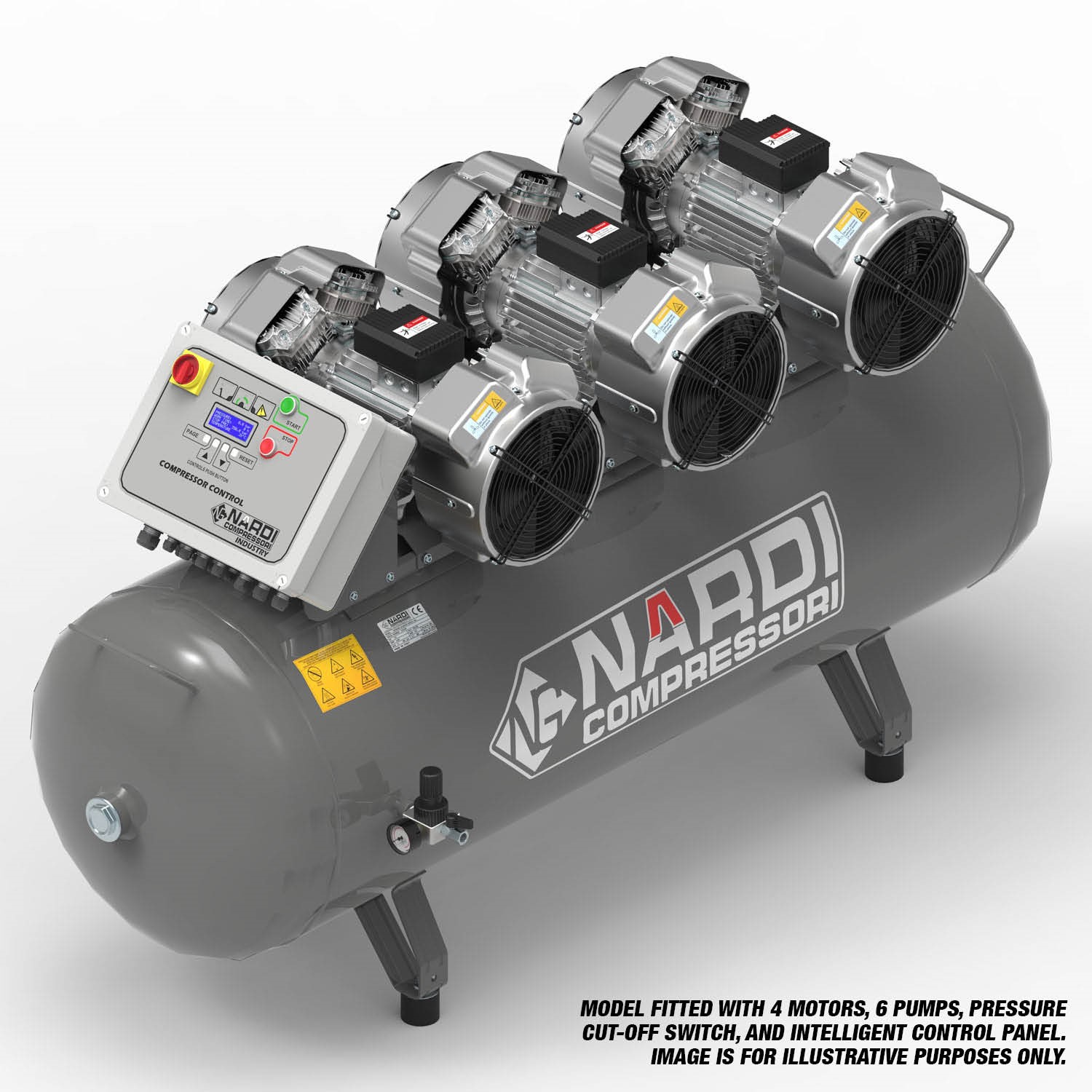

NARDI EXTREME MP 9HP 500ltr Compressor with Panel
EXTMP50090CP

The NARDI EXTREME MP 9HP 500ltr Compressor with Panel is designed for high volume and low pressure applications, delivering powerful air via slow-running motor and oil-free pump, plus an intelligent control for motor control and system monitoring.

Ideal for a variety of industrial-grade applications.

KEY FEATURES

  • Intelligent control panel; motor control and system monitoring
  • Triple 3-phase slow-running 4-pole motors for high performance
  • V-Twin cylinder; direct drive crankshaft via motor shaft
  • High-quality oil-free pump for long life and low maintenance
  • Air intake particle diffusion for reduced air contamination
  • Low noise; perfect for noise critical situations

SIP 3-Year Standard Silver Warranty | Find out more

Full Specification

The NARDI EXTREME MP 9HP 500ltr Compressor with Panel is designed for high volume and low pressure applications, delivering powerful air via slow-running motor and oil-free pump, plus an intelligent control for motor control and system monitoring.

The integrated control panel provides bespoke multi-pump support, delivering even power distribution on up to 3 motor/pump configurations, operating them continually dependant on air requirements and optimising usage.

Elsewhere, the panel features a service internal indicator for maintaining optimum performance and reliability and individual meters and timers to measure pump hours via a microprocessor-controller pump selection.

Ideal for a variety of industrial-grade applications.

Browse NARDI Compressors for more specialist compressor solutions.

  • Triple 3-phase slow-running 4-pole motors for high performance
  • Intelligent control panel; motor control and system monitoring
  • V-Twin cylinder; direct drive crankshaft via motor shaft
  • High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
  • Concentric big end bearings for reduced vibration and increased pump life
  • Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
  • Fan-shaped stainless steel valves provide long life and durability
  • Forced air cooling for an extended runtime and performance
  • Low noise; perfect for noise critical situations
  • Built with an adjustable air pressure regulator
  • SIP 3-Year Standard Silver Warranty
  • Manufactured in Italy

Technical Information

ITEM NO. EXTMP50090CP
Input Supply: 400v 3-PHASE
Motor Power: 3x 2.20kW (3.00hp) 4-POLE 1400rpm
Receiver Size: 270ltr
Piston Displacement: 63.60CFM (1800ltr/min)
Free Air Delivery (FAD): 44.50CFM (1272ltr/min)
Max. Air Pressure: 145psi (10bar)
No. of Cylinders: 12 cylinders
Noise Level: 75dB(A)
Net Weight: 253.00kg
Gross Weight: 340.00kg
Product Dimensions: 870(H) x 640(W) x 1600mm(D)
Packaged Dimensions: 1100(H) x 950(W) x 1700mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 3 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL NARDI MACHINES!

We are extremely confident that our products will offer exceptional durability, reliability, and heavy-duty performance, and to back that up we are now offering the SIP 3-Year Standard Silver Warranty across all* NARDI machines. On top of this, we offer a service-based Gold Warranty that extends the duration of your warranty for a further 24 months if purchased.

In addition, all SIP Premium Partner Brands now offer comprehensive warranties of their own!

FIND OUT MORE

*excludes accessories and consumables.
