SIP 1 TONNE Gantry Crane Beam Trolley

03851

Click on image to enlarge

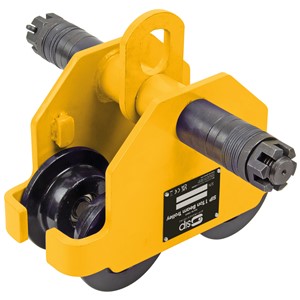

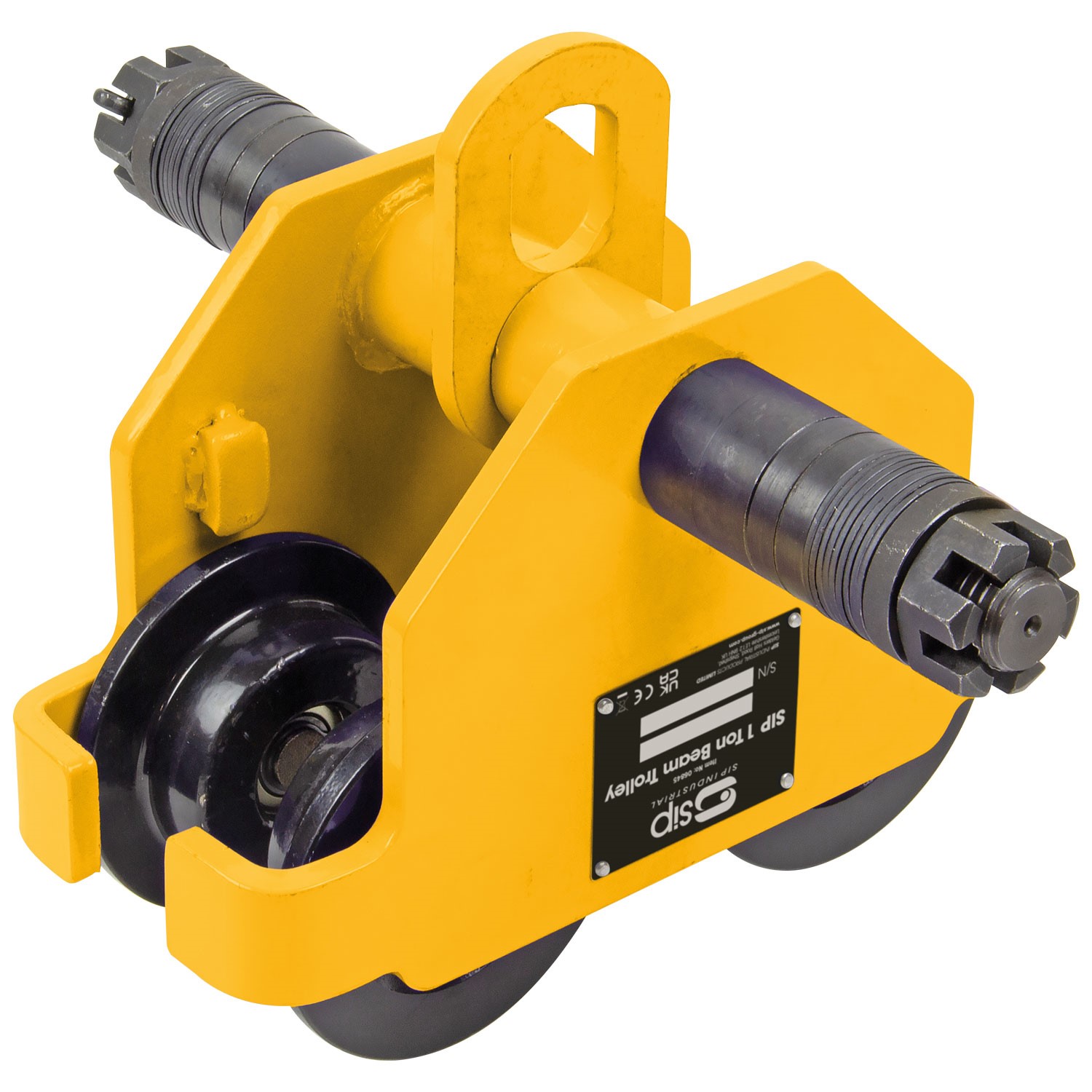

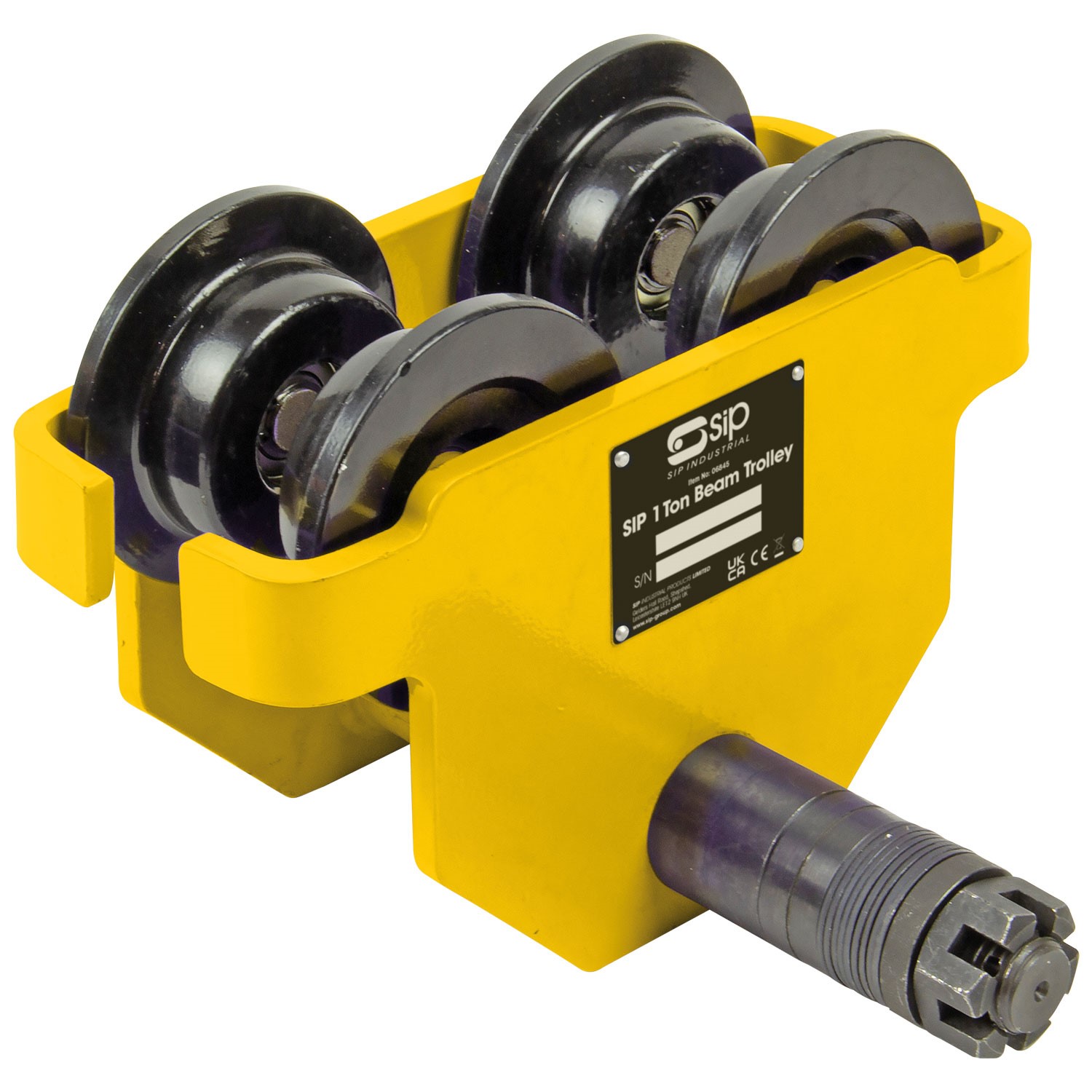

SIP 1 TONNE Gantry Crane Beam Trolley

03851

The SIP 1 TONNE Gantry Crane Beam Trolley is a heavy-duty push-pull trolley designed for a variety of professional garage and workshop demands with 'I' section and RSJ beam types. With 4 bearing-mounted wheels and integrated wheel guards, this trolley is perfect for when two or more trolleys are in use on the same gantry crane frame.

Suitable for the SIP 1 TONNE Mobile Gantry Crane Frame and the SIP Chain Block for use in automotive maintenance and repair, servicing, material handling and manufacturing.

KEY FEATURES

1 TONNE safe workload for versatile performance
Heavy-duty push-pull gantry crane beam trolley
Suitable for all 'I' section and RSJ beam types
4 heavy-duty bearing-mounted trolley wheels
Fitted with wheel guards for protection

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 1 TONNE Gantry Crane Beam Trolley is a heavy-duty push-pull trolley designed work alongside the SIP 1 TONNE Mobile Gantry Crane Frame and SIP Chain Block to provide a complete lifting and support solution in garages and workshops.

This trolley is designed for a variety of professional-grade manual lifting demands with 'I' section and RSJ beam types. With 4 bearing-mounted wheels and integrated wheel guards, it is perfect for when two or more trolleys are in use on the same gantry frame.

It is perfect for use in a wide variety of garage and workshop applications including automotive maintenance and repair, servicing, material handling and manufacturing.

1 TONNE safe workload for versatile performance
Heavy-duty push-pull gantry crane beam trolley
Suitable for all 'I' section and RSJ beam types
4 heavy-duty bearing-mounted trolley wheels
Fitted with wheel guards for protection
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03851
Suitable For:	03849
Safe Working Load:	1 TONNE
Min. 'I' Beam Width:	64mm
Max. 'I' Beam Width:	140mm
Min. Standard Beam:	125mm x 75mm x 5.5mm
Max. Standard Beam:	250mm x 125mm x 7.5mm
Designed For:	'I' sections / RSJ beams
Net Weight:	9.60kg
Gross Weight:	10.00kg
Product Dimensions:	225(H) x 250(W) x 310mm(D)
Packaged Dimensions:	190(H) x 145(W) x 325mm(D)
