SIP 22 TON Air Floor Jack

03643

SIP 22 TON Air Floor Jack03643SIP 22 TON Air Floor Jack
03643
Product thumbnail.

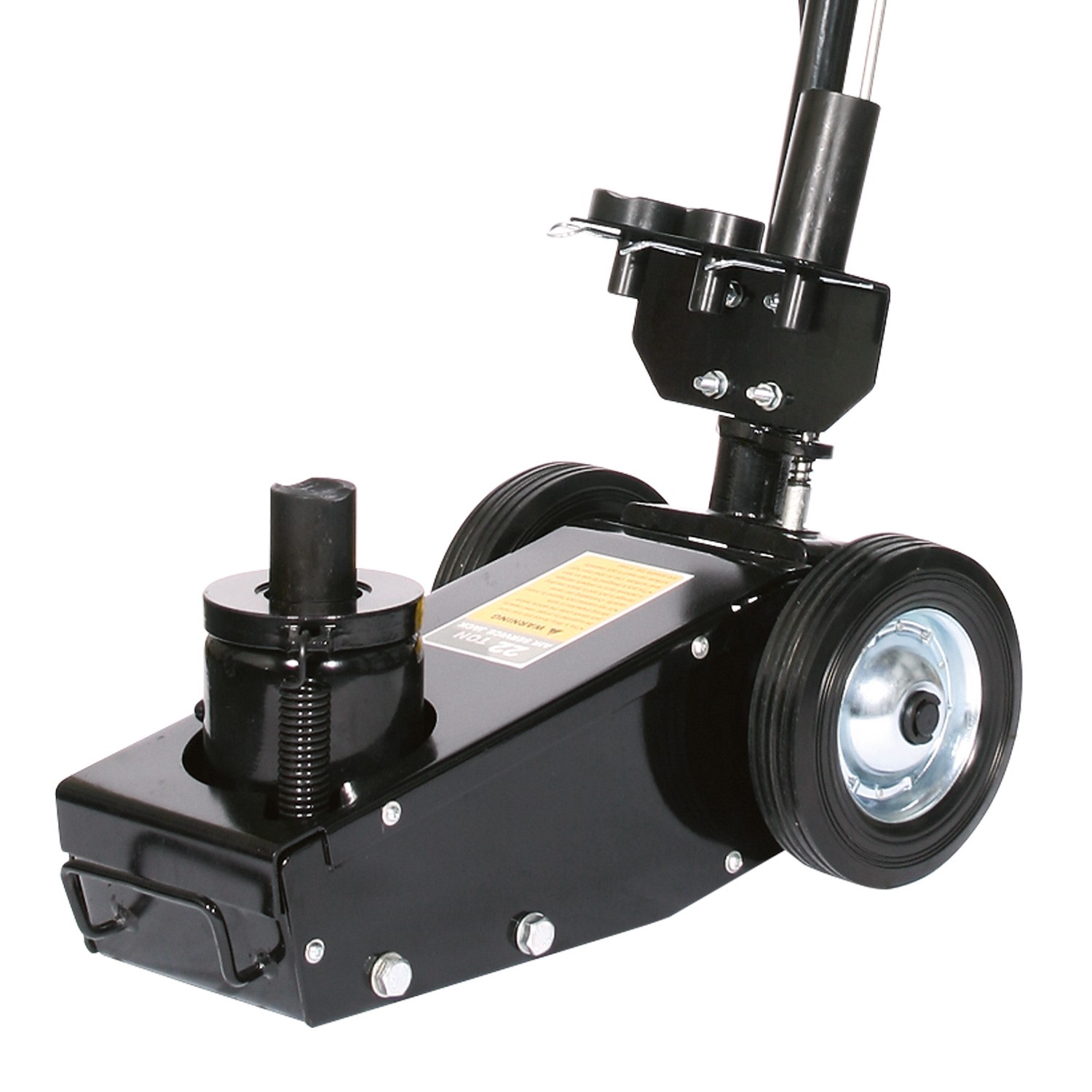

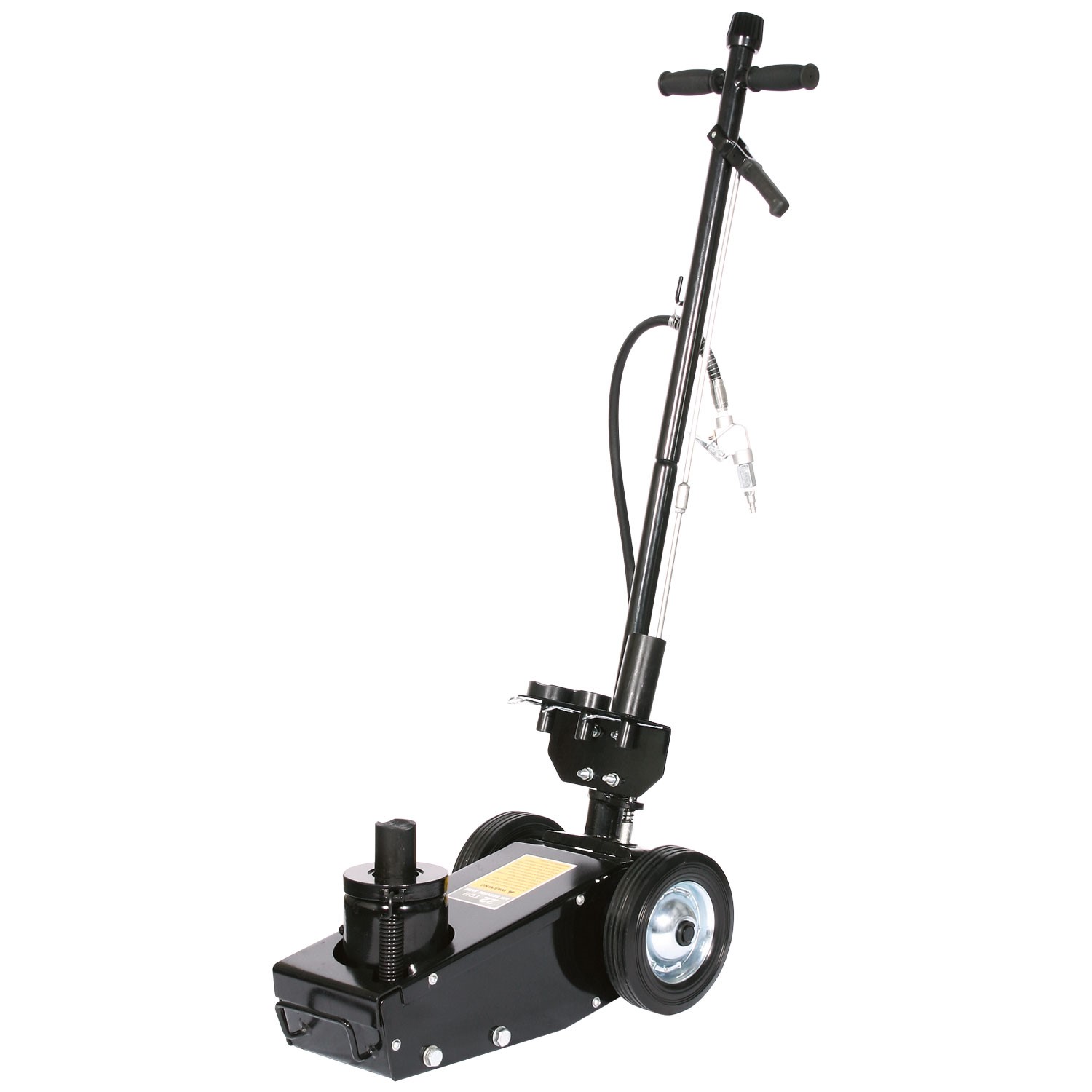

The SIP 22 TON Air Floor Jack is built for extreme heavy-duty lifting of larger vehicle types, but maintains a low-profile design ideal for easy entry, lifting up to 555mm and includes a 115mm screw extension.

Suitable for a range of extreme lifting in garages and workshops.

KEY FEATURES

  • 230mm to 555mm adjustable lifting height range
  • 115mm screw extension for increased versatility
  • Large non-marking rubber wheels for durability
  • Low-profile design for easy access under vehicles

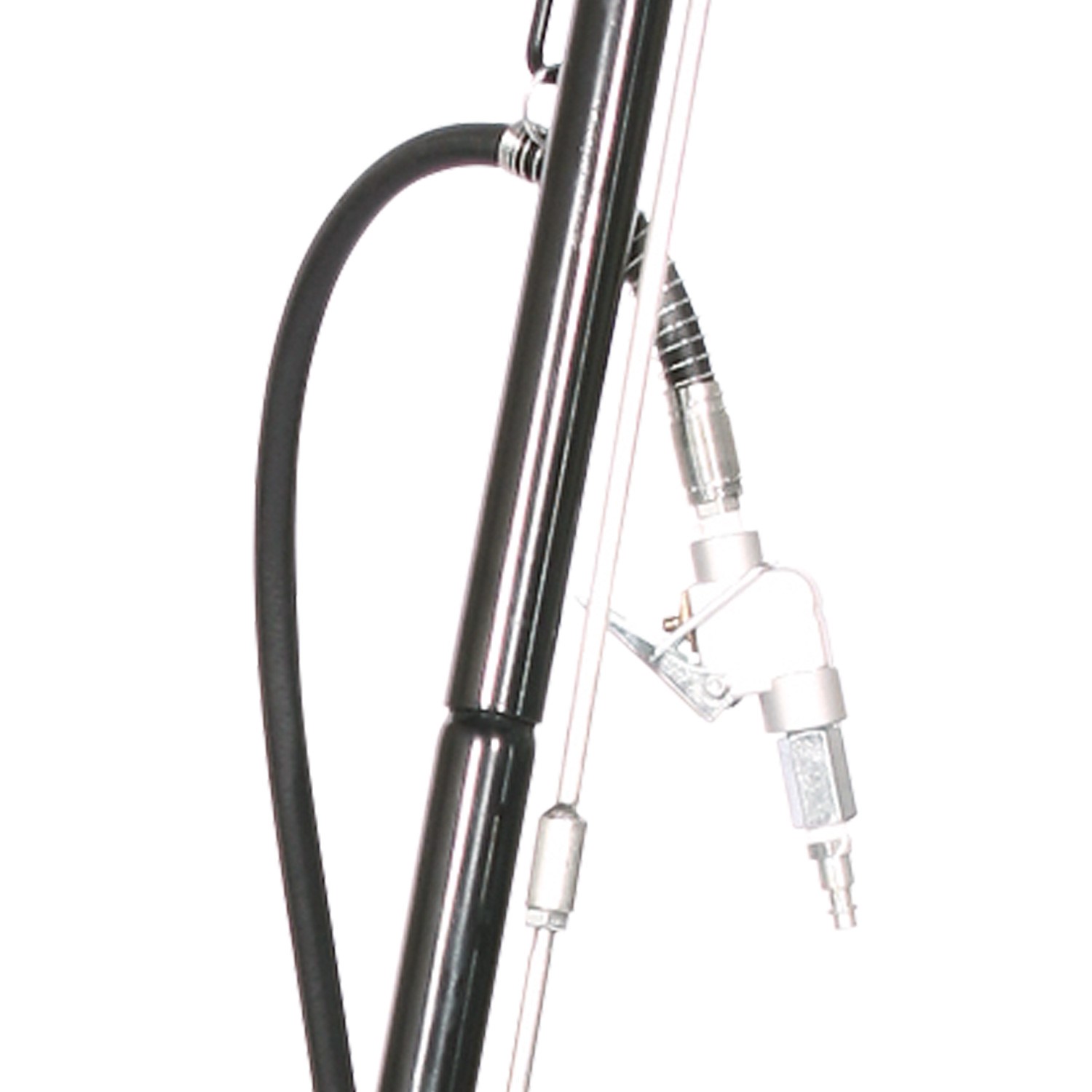

  • Air line hook and air control valve

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 22 TON Long Floor Jack is built for an array of extreme heavy-duty lifting of larger vehicles, including vans, trucks, agricultural machinery, and more, but maintains a low-profile design that makes access under all vehicles an easy entry.

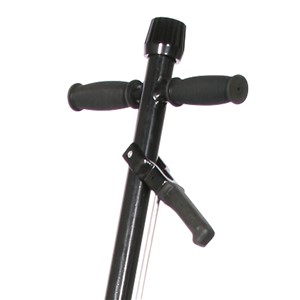

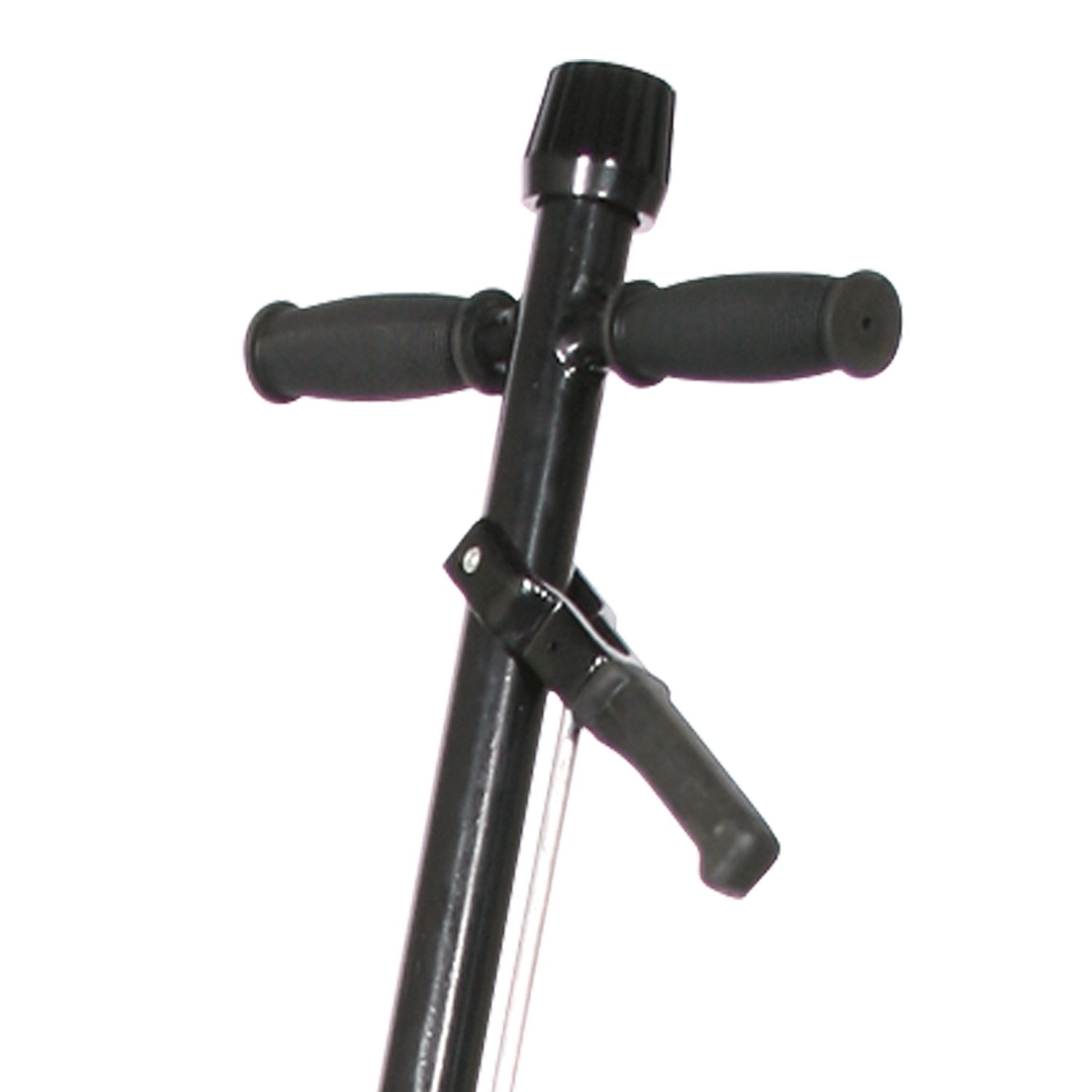

An extra-long handle and large non-marking rubber wheels make positioning easy.

Browse SIP AUTOMOTIVE for more quality equipment from SIP Industrial.

  • 22 TON maximum weight capacity
  • 230mm to 555mm adjustable height lifting range
  • 115mm screw extension for increased versatility
  • 9.50CFM (269ltr/min) maximum air consumption
  • 102psi (7bar) to 145psi (10bar) air pressure
  • Large non-marking rubber wheels for durability
  • Low-profile design for easy access under vehicles

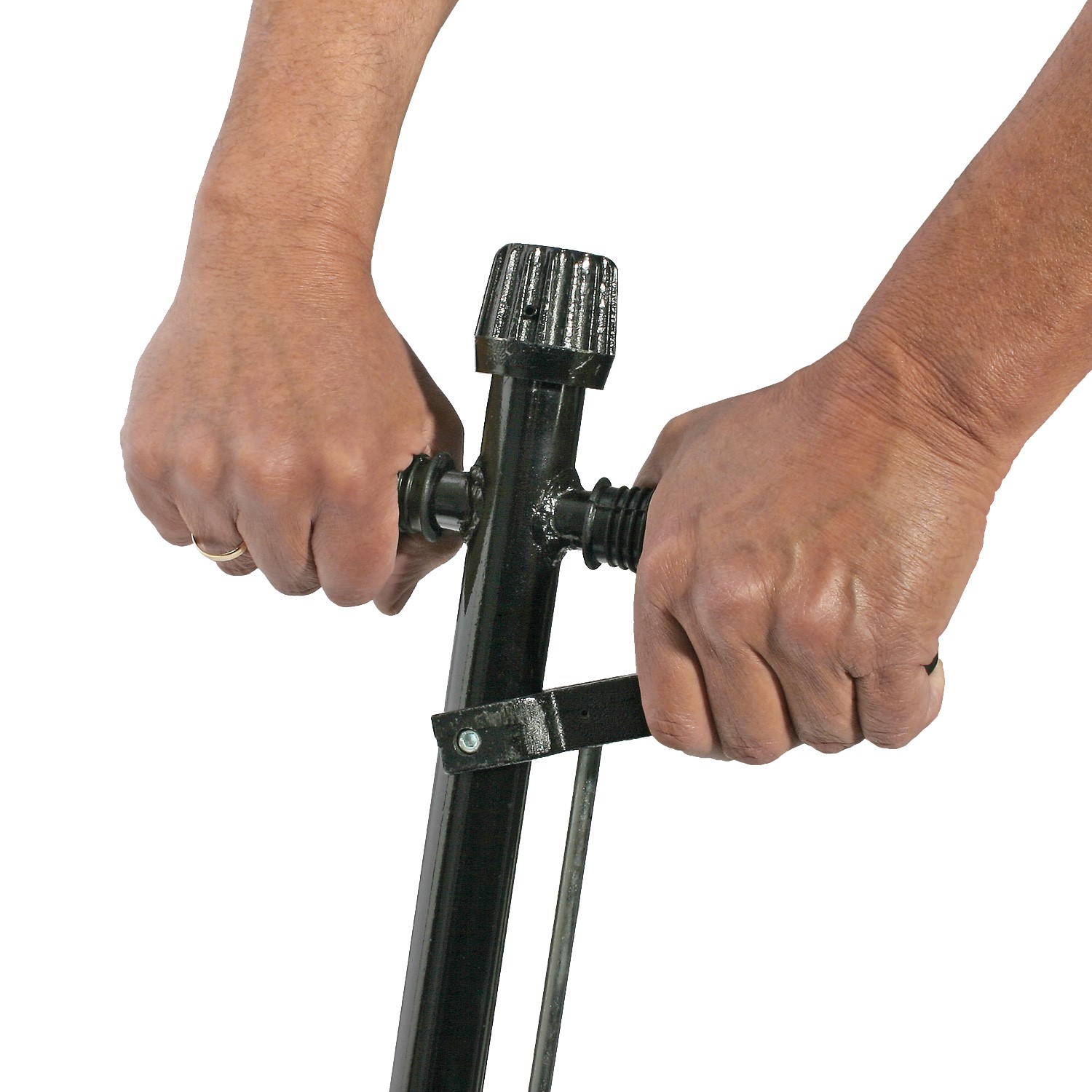

  • Integrated handle lock and release valve
  • Air line hook and air control valve
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 03643
Weight Capacity: 22 TON
Min. Lifting Height: 230mm
Max. Lifting Height: 555mm
Ram Stroke: 120mm
Screw Extension: 115mm
Working Pressure: 102psi (7bar) - 145psi (10bar)
Av. Air Consumption: 9.50CFM (269ltr/min)
Adaptor Size: Ø 110mm x 50mm
Ø 50mm x 50mm
Ø 20mm x 50mm
Ø 20mm x 70mm
Net Weight: 45.90kg
Gross Weight: 49.90kg
Product Dimensions:
Packaged Dimensions: 280(H) x 360(W) x 670mm(D)

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.
