SIP 8" Swivel Head Pull-Down Metal Bandsaw

01520

SIP 8" Swivel Head Pull-Down Metal Bandsaw01520SIP 8" Swivel Head Pull-Down Metal BandsawSIP 8" Swivel Head Pull-Down Metal BandsawSIP 8" Swivel Head Pull-Down Metal BandsawSIP 8" Swivel Head Pull-Down Metal BandsawSIP 8" Swivel Head Pull-Down Metal Bandsaw
01520
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

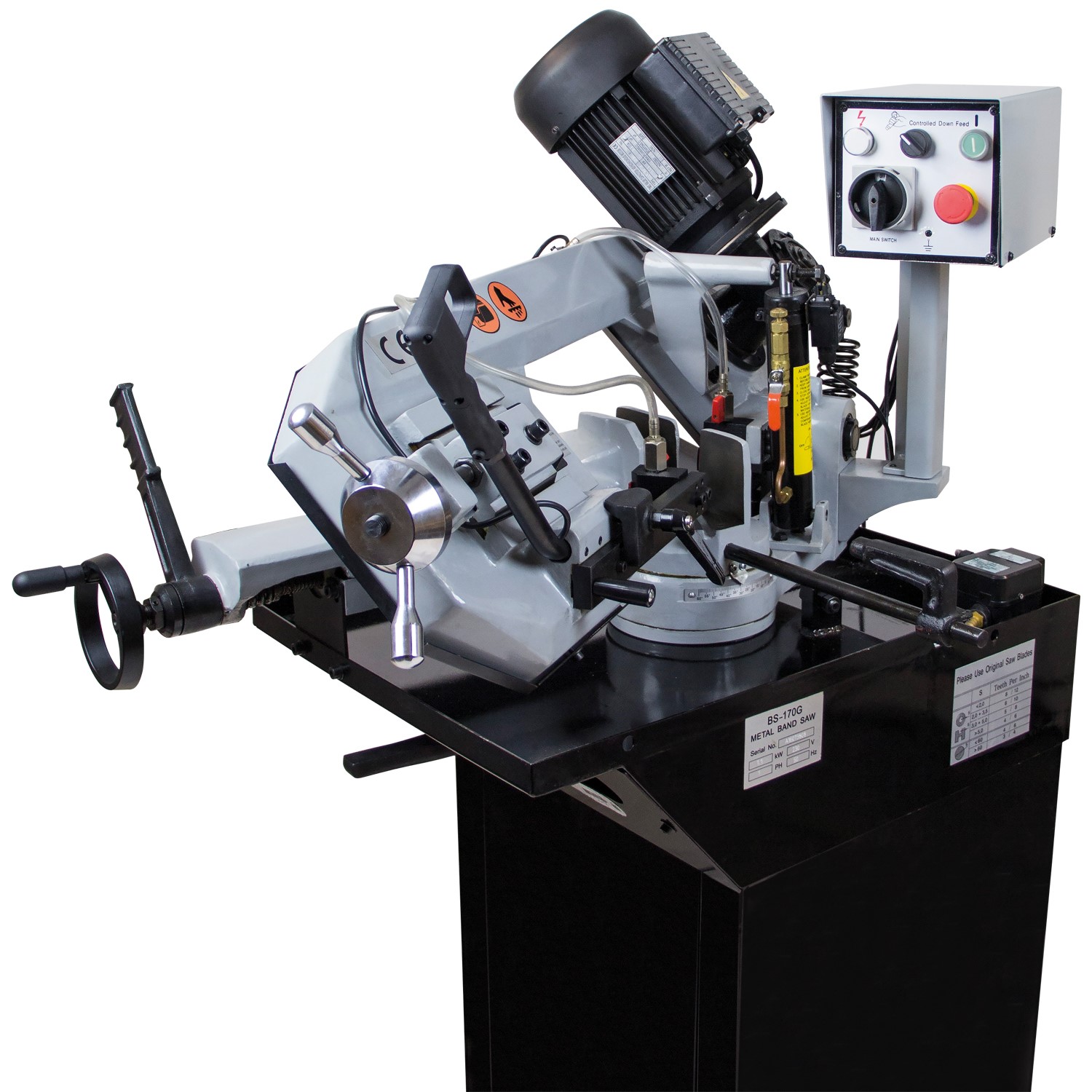

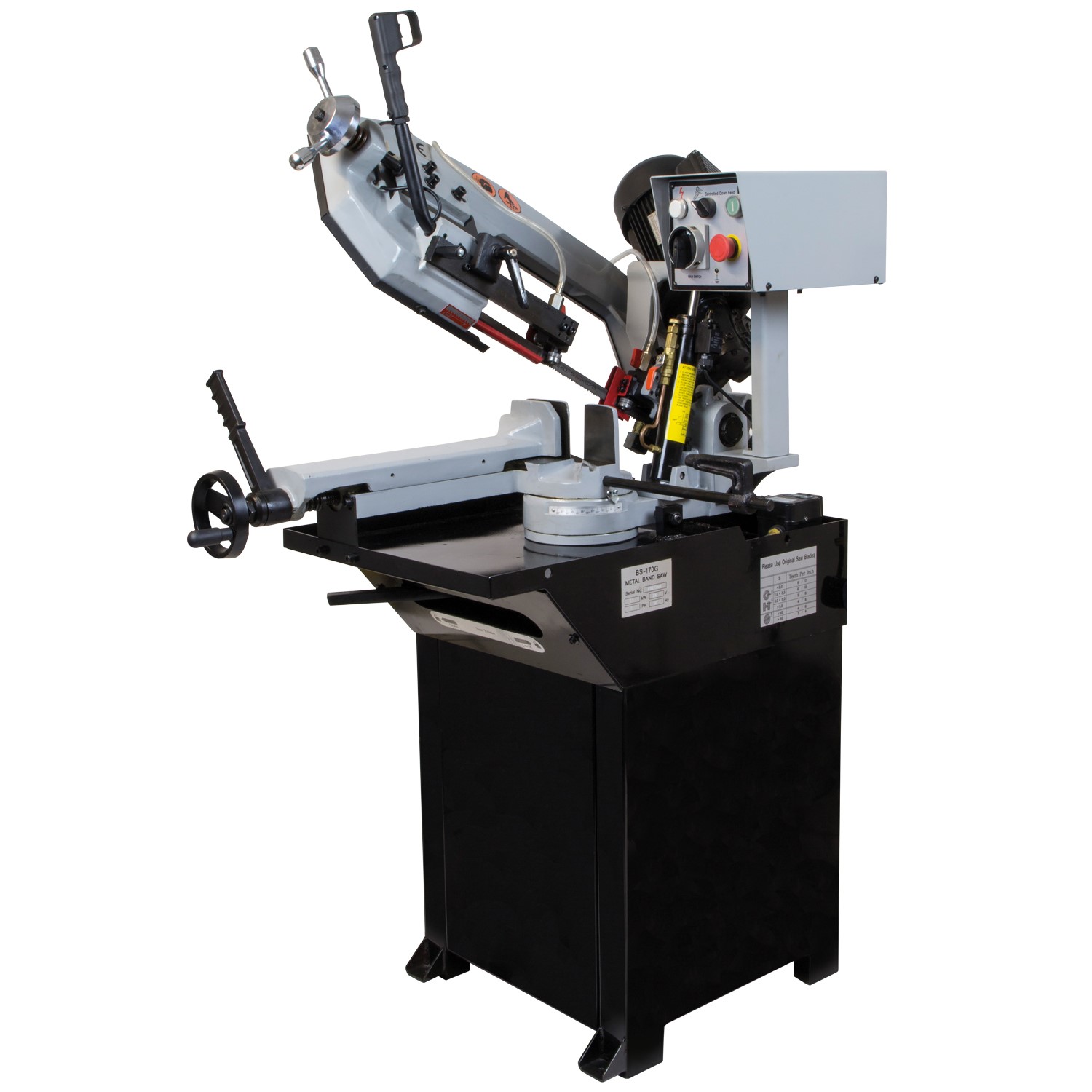

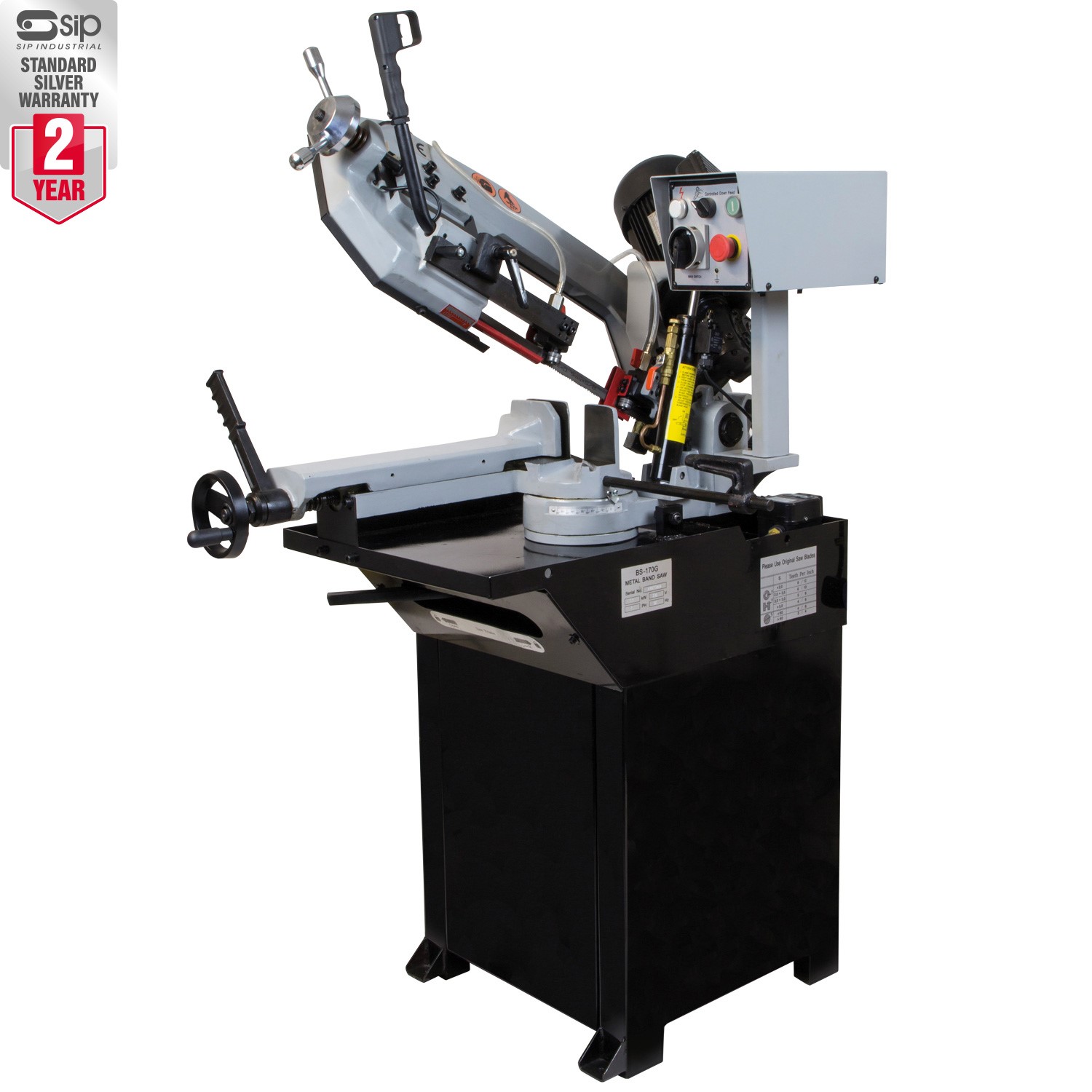

The SIP 8" Swivel Head Pull-Down Metal Bandsaw uses a powerful gearbox-driven system with manual or semi-automatic feed control to comfortably accommodate individual and larger cuts, with repetitive cutting made simpler via a quick release vice.

Perfect for trade and professional applications.

KEY FEATURES

  • Pedestal-mounted swivel head with versatile cutting options
  • Manual and semi-automatic feed for smaller and larger cuts
  • Cast iron swivel bow for high accuracy and reduced vibration
  • Cast iron vice with quick release for repetitive cutting
  • Adjustable ram dampener for smooth descent and control

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 8" Swivel Head Pull-Down Metal Bandsaw provides heavy-duty cutting performance of a range of metals in trade and professionals environments via a powerful gearbox-driven system.

Versatile cutting options offer manual and semi-automatic feed control ideal for individual cutting or more automated operation for larger cuts.

Not only this, but durability is also superior, with an adjustable ram dampener and integrated coolant system providing improved blade life.

Browse SIP METALWORK for more cutting, drilling, and grinding solutions.

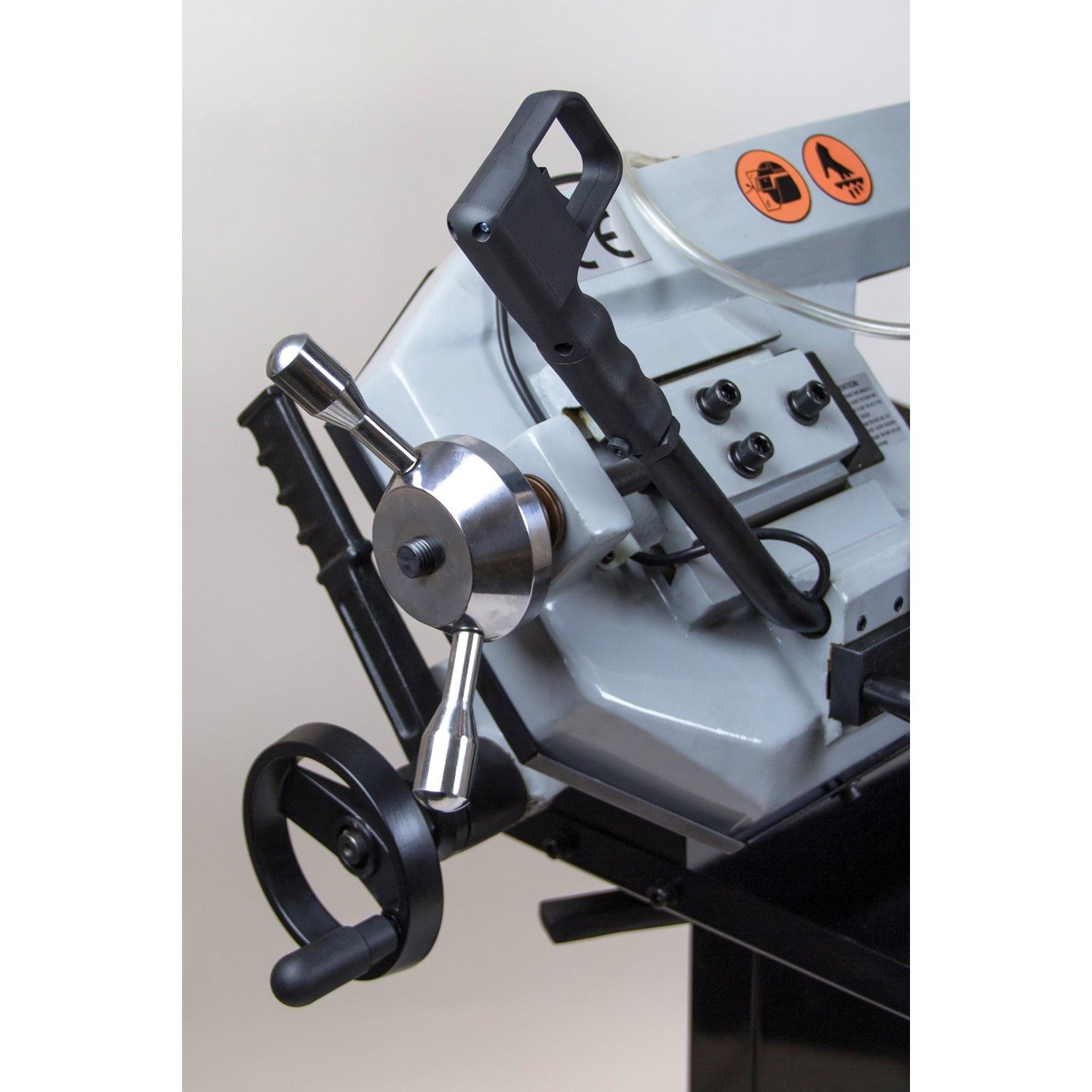

  • Pedestal-mounted swivel head pull-down handle with control switch
  • Manual or semi-automatic feed control to cater for different requirements; manual for individual cutting and semi-automatic operation for larger cuts
  • Cast iron swivel bow for reduced vibration and increased accuracy, plus quick angle adjustments up to 60°

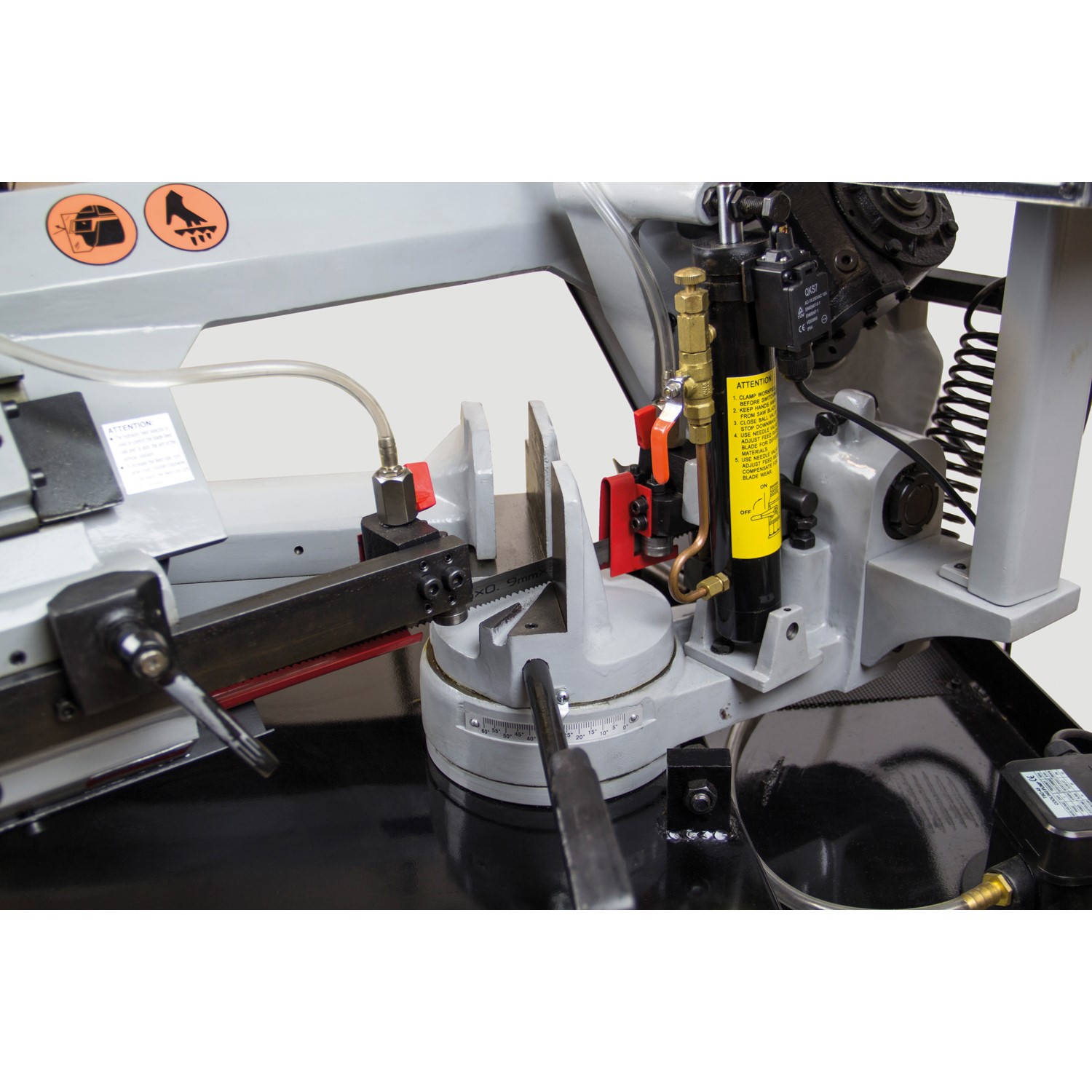

  • Adjustable hydraulic ram dampener to aids smooth cutting descent and control, simultaneously aiding blade performance
  • Cast iron vice with quick release handle is perfect for repetitive cutting

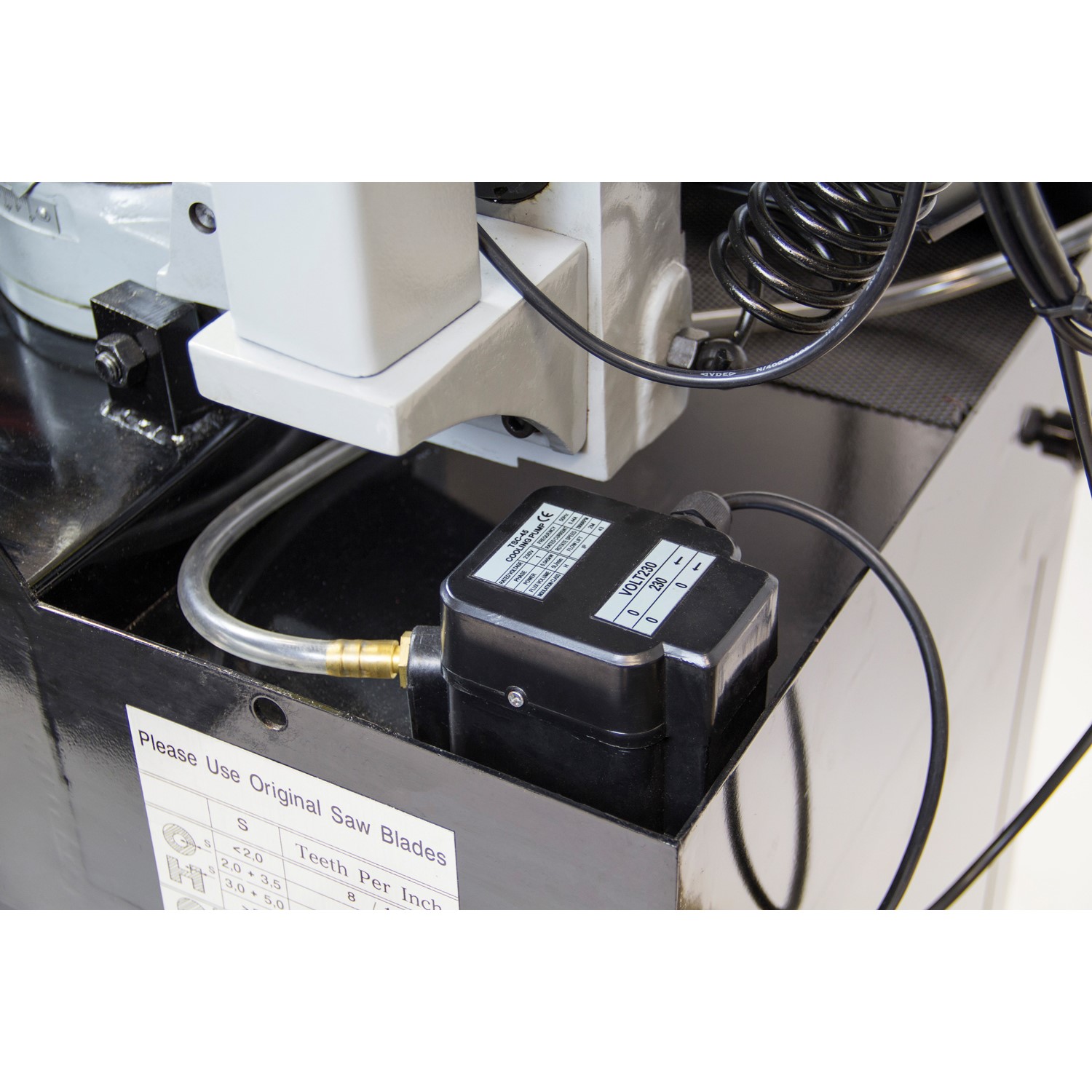

  • Coolant system extends blade life area and cools the cutting area
  • Integrated safety feature with 24v control circuit
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 01520
Input Supply: 230v (13A)
Motor Power: 1.1kW (1.5hp)
Operating Speed: 80mtr/min
Blade Size: 20mm x 0.9mm x 2085mm
Max. Cutting Capacity: Circular;
90°: Ø 170mm
60°: Ø 70mm
45°: Ø 120mm
Rectangular;
90°: 170mm x 200mm
60°: 60mm x 60mm
45°: 150mm x 125mm
Net Weight: 172.40kg
Gross Weight: 224.50kg
Product Dimensions:
Packaged Dimensions: 990(H) x 1220(W) x 705mm(D)
