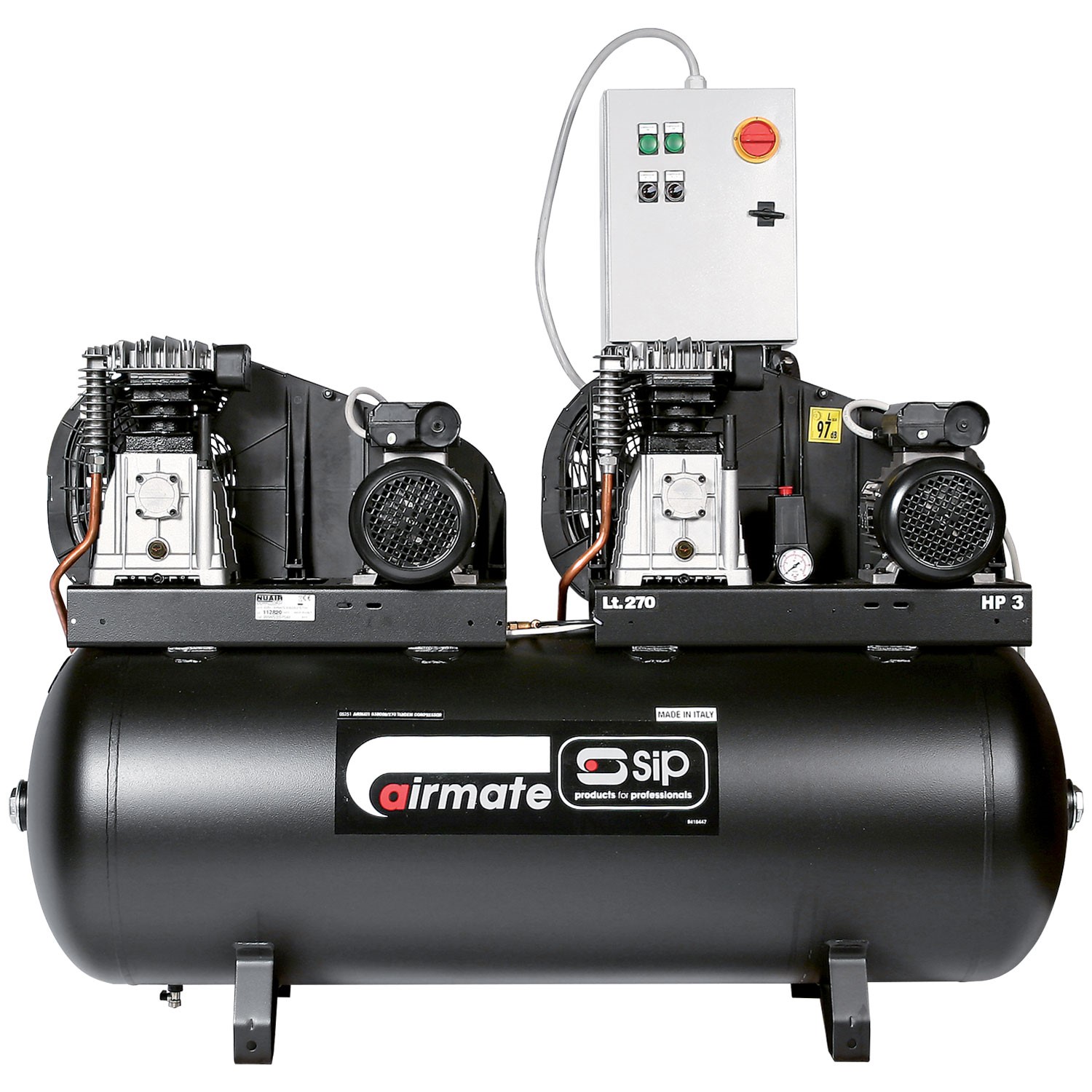

SIP B3800/270 270ltr Tandem Belt Drive Compressor

05251

SIP B3800/270 270ltr Tandem Belt Drive Compressor05251SIP B3800/270 270ltr Tandem Belt Drive CompressorSIP B3800/270 270ltr Tandem Belt Drive CompressorSIP B3800/270 270ltr Tandem Belt Drive CompressorSIP B3800/270 270ltr Tandem Belt Drive Compressor
05251
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

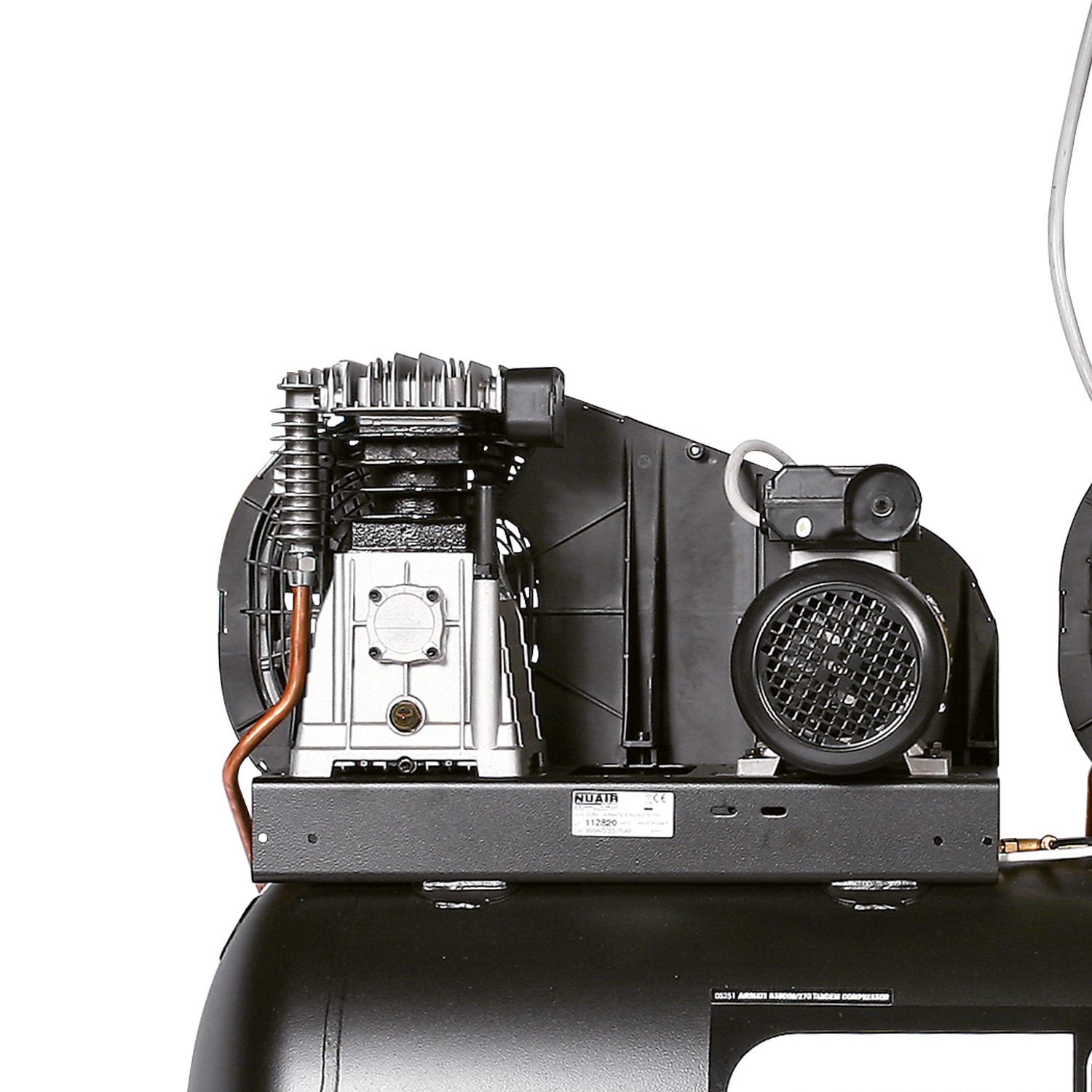

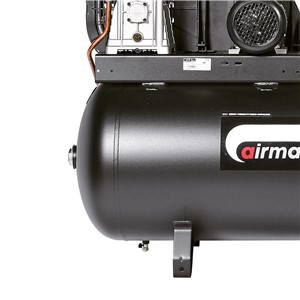

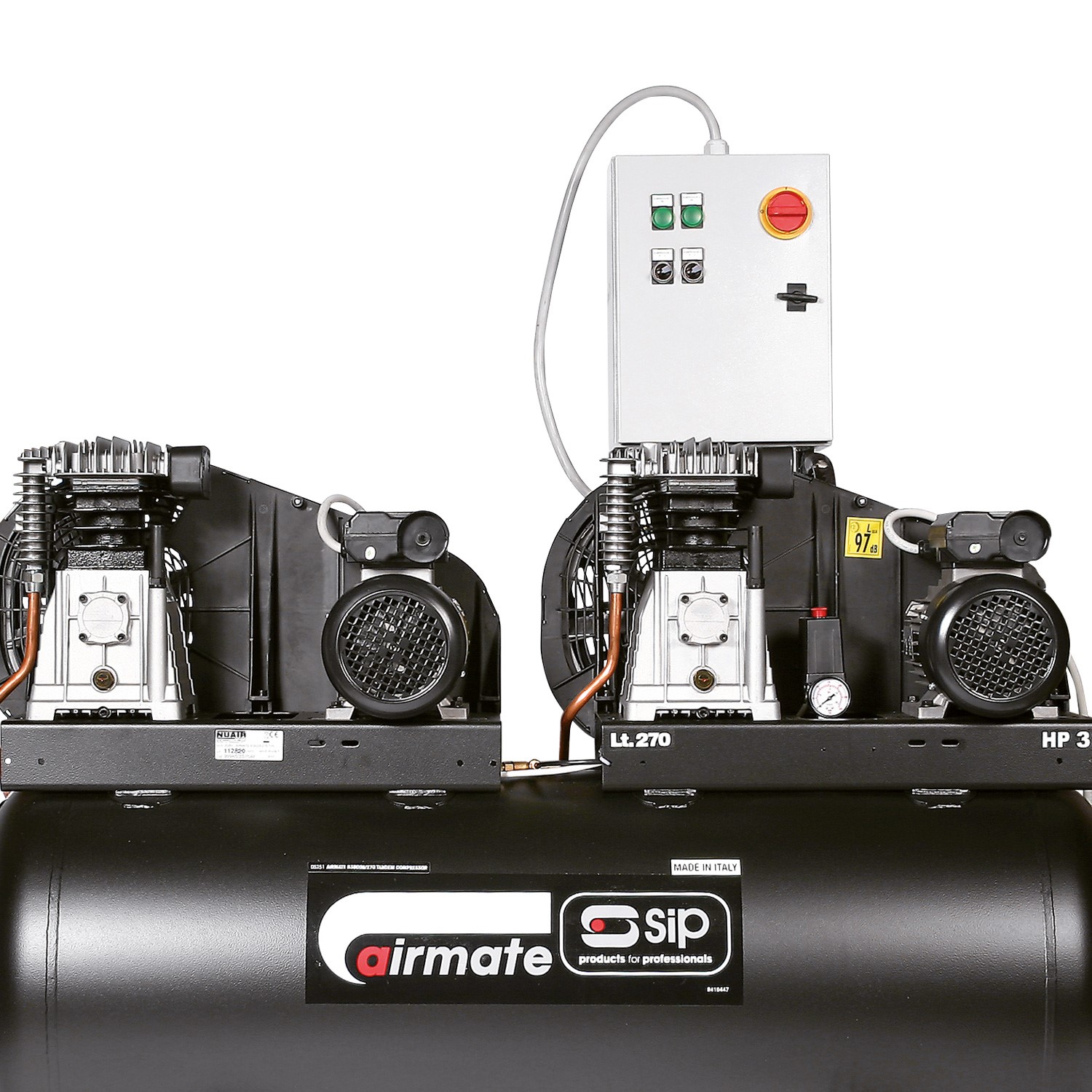

The SIP B3800/270 270ltr Tandem Belt Drive Compressor offers powerful operation via a tandem set-up of twin B3800 pumps and 3hp motors. This provides continued running should a single motor or pump suffer failure, meaning added reliability and peace-of-mind.

A must-have for any garage or workshop requiring consistently reliable compressed air.

KEY FEATURES

  •  32CFM (906ltr/min) piston displacement
  •  Oil-lubricated and belt-driven workhorse compressor
  •  Twin B3800 pumps and powerful dual 3hp (2.2kW) motors
  •  Central control box and staggered starting reduces current draw
  •  Continued operation should a pump or motor suffer failure
  •  Heavy-duty cast iron barrel for increased service life

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

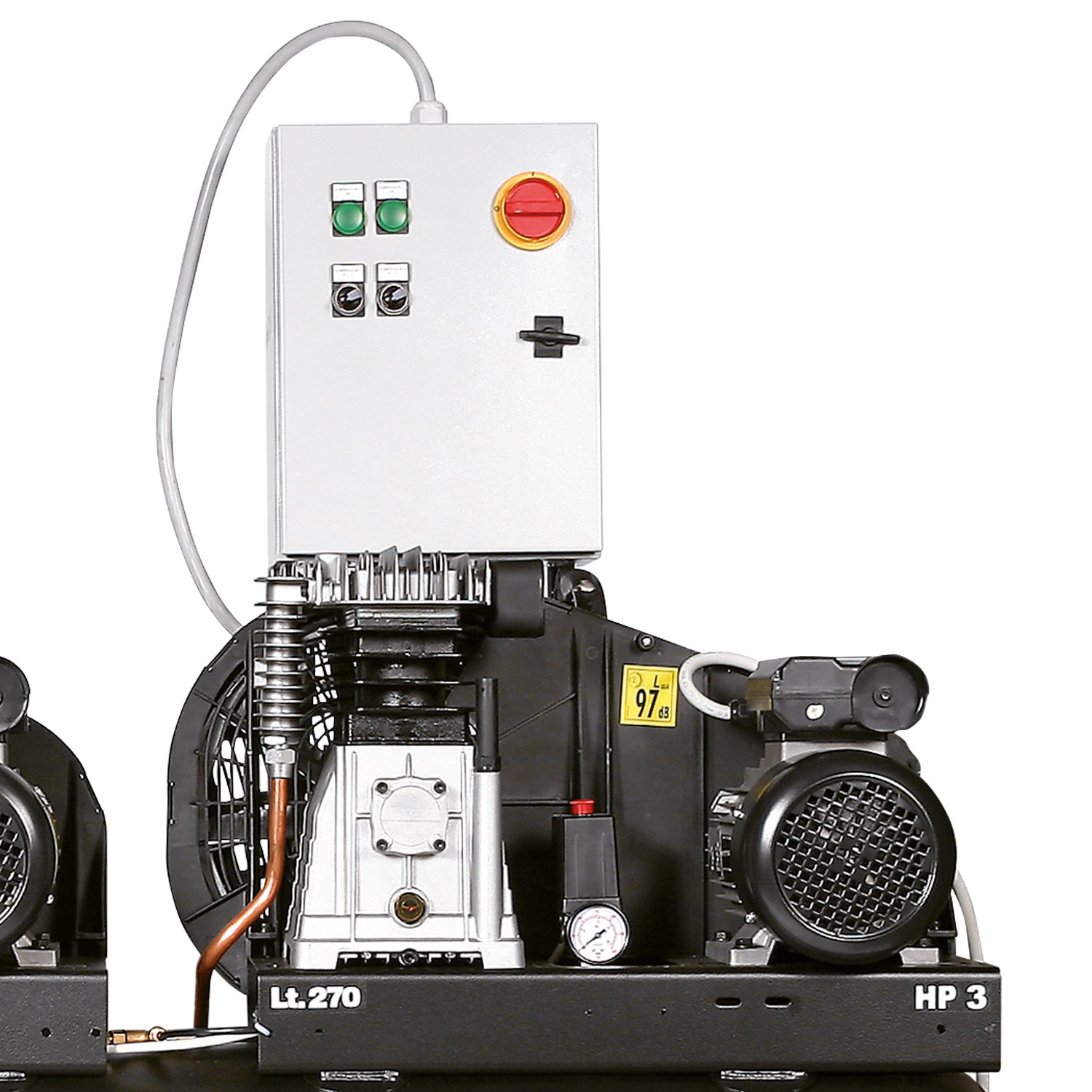

The SIP B3800/270 270ltr Tandem Belt Drive Compressor offers powerful operation via a tandem set-up of twin B3800 pumps and 3hp motors. This provides continued running should a single motor or pump suffer failure, meaning added reliability and peace-of-mind. All of this is controlled by a central control box and staggered starting.

Built with heavy-duty twin B3800 pumps, controlled from a central box, and dual 3hp motors, the B3800/270 offers continued operation in the event that a single pump or motor should fail. Perfect for garage or workshop environments where consistent and uninterrupted compressed air production is essential.

An aluminium aftercooler offers reduced air moisture, reduced weight and a higher corrosion resistance. A cast iron barrel, finned manifolds, oversized crankcase and aluminium die-cast valve plate increase durability, particularly in prolonged trade use.

This compressor is a true workhorse and is an essential piece of equipment to include in any trade environment where prolonged demands need to be satisfied.

  • Oil-lubricated and belt-driven workhorse compressor
  • 32CFM (906ltr/min) piston displacement, 145psi (10bar) pressure
  • Heavy-duty twin B3800 pumps and powerful dual 3hp (2.2kW) motors
  • Central control box and staggered starting reduces current draw
  • Continued operation in the event of single pump or motor failure
  • Fitted aluminium aftercooler offers reduced air moisture, a reduced compressor weight and higher resistance to corrosion for an extended service life
  • Heavy-duty cast iron barrel for increased durability and life
  • Finned manifolds and oversized crankcase for prolonged use
  • Heavy-duty aluminium die-cast valve plate
  • SIP 2-Year Standard Silver Warranty
  • Manufactured in Italy

Technical Information

ITEM NO. 05251
Input Supply: 230v (32A)
Motor Power: 2x 3hp (2.2kW)
Receiver Size: 270ltr
Piston Displacement: 32.00CFM (906ltr/min)
Free Air Delivery (FAD): 22.00CFM (623ltr/min)
Max. Air Pressure: 145psi (10bar)
Net Weight: 152.50kg
Gross Weight: 176.50kg
Product Dimensions:
Packaged Dimensions: 1330(H) x 560(W) x 1640mm(D)
