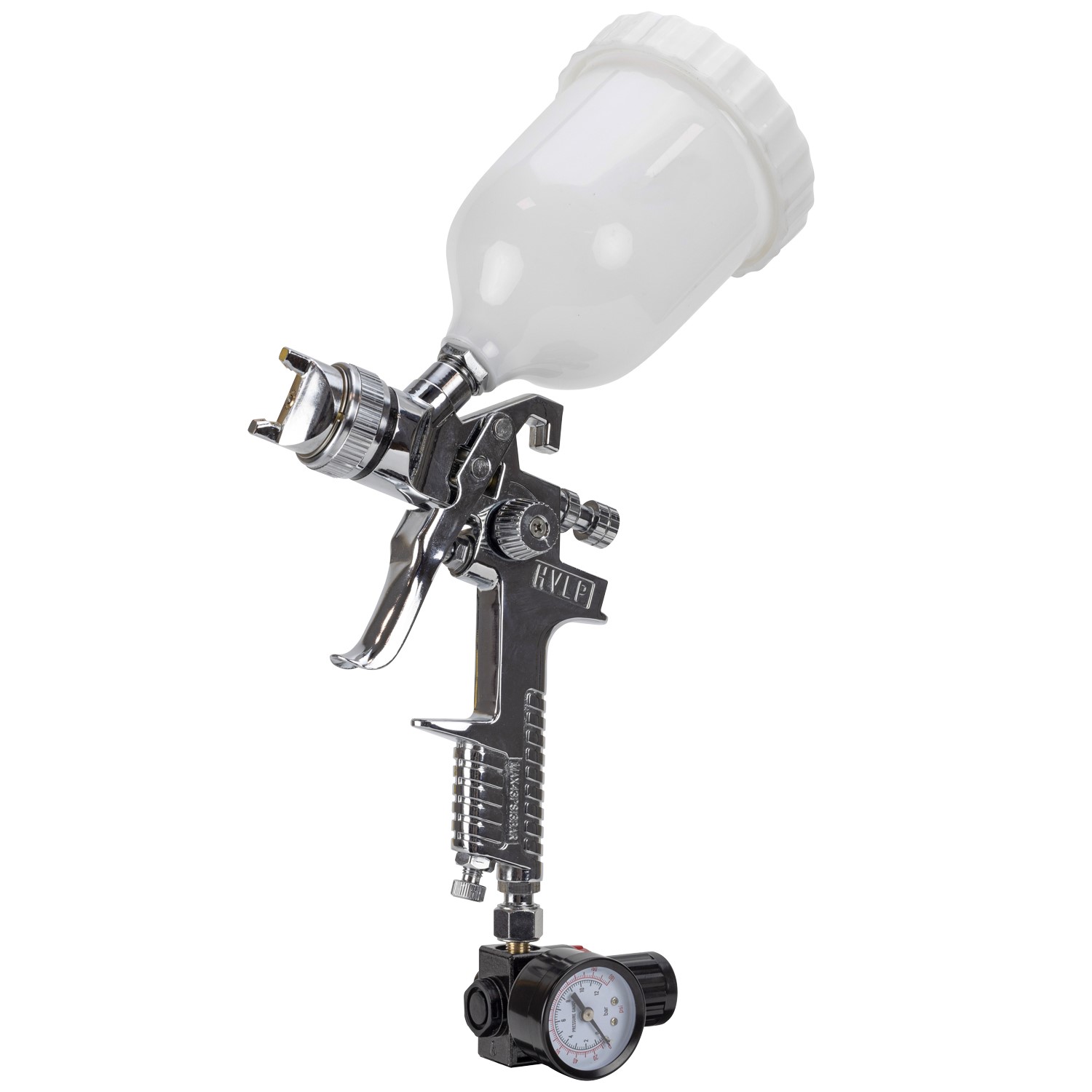

SIP 1.4mm Sapphire HVLP Gravity Spray Gun

02138

SIP 1.4mm Sapphire HVLP Gravity Spray Gun02138SIP 1.4mm Sapphire HVLP Gravity Spray Gun
02138
Product thumbnail.

The SIP 1.4mm Sapphire HVLP Gravity Spray Gun is a powerful air-powered spray gun designed for optimal versatility and control when spraying in a variety of garage and workshop environments. This includes applying paints plus a selection of other mediums in automotive, woodwork, metalwork and industrial applications.

This gun is extremely versatile thanks to fully adjustable fluid output and fan control, and is particularly suited for high volume and low pressure requirements.

Suitable for water-based paint.

KEY FEATURES

  •  Low pressure gravity-fed spray with 1.4mm nozzle
  •  600ml paint cup provides good reserve for minimal refilling
  •  Fully adjustable fluid output and fan control for versatility
  •  Ideal for high volume and low pressure requirements
  •  Suitable for water-based paint

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 1.4mm Sapphire HVLP Gravity Spray Gun is a powerful air-powered spray gun designed for optimal versatility and control when spraying in a variety of garage and workshop environments. This includes applying paints plus a selection of other mediums in automotive, woodwork, metalwork and industrial applications.

Built for maximum versatility, this spray gun is designed with fully adjustable fluid output and fan control. A 600ml paint cup provides a good reserve for less refilling and reduced interruption. This helps to match the output to the desired specification.

It also offers greater paint control, applying fast and even coats on larger surfaces, as well as hard-to-reach areas unsuitable for brushes and rollers. SIP Spray Guns offer fine spray patterns suitable for achieving smooth and professional-looking finishes.

This gun is particularly well-suited to high volume and low pressure requirements.

  • Professional gravity-fed spray gun with 1.4mm nozzle
  • 12.5CFM (354ltr/min) average working air consumption
  • 43psi (3bar) - 58psi (4bar) max. operating pressure
  • 600ml paint cup provides a good reserve for less refill interruption
  • Perfect for greater paint control, applying fast and even coats on large surfaces, and hard-to-reach areas unsuitable for brushes or rollers
  • Fully adjustable fluid output and fan control for added versatility and matching output to the required application

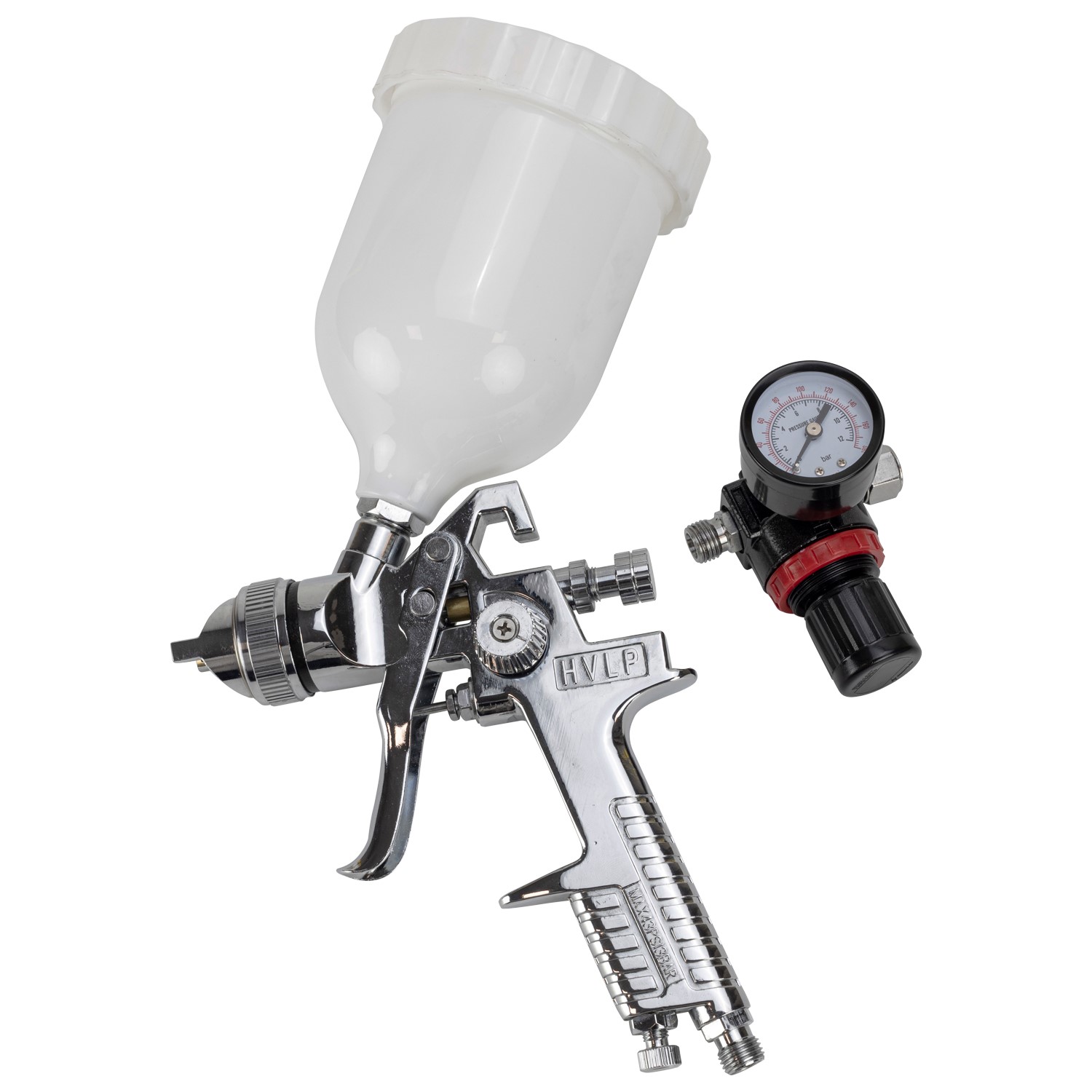

  • Supplied with regulator and gauge for high accuracy
  • Ideal for high volume and low pressure requirements
  • Suitable for water-based paint
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 02138
Feed Type: Gravity
Nozzle Diameter: Ø 1.4mm
Operating Pressure: 43psi (3bar) - 58psi (4bar)
Av. Air Consumption: 12.50CFM (354ltr/min)
Paint Cup Capacity: 600ml
Water Based Paint: Yes
Air Inlet: 1/4" BSP
Net Weight: 1.10kg
Gross Weight: 1.11kg
Product Dimensions: 125(H) x 125(W) x 250mm(D)
Packaged Dimensions: 150(H) x 230(W) x 140mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
