SIP Air Hose Reel R15

07977

SIP Air Hose Reel R1507977SIP Air Hose Reel R15SIP Air Hose Reel R15SIP Air Hose Reel R15SIP Air Hose Reel R15
07977
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

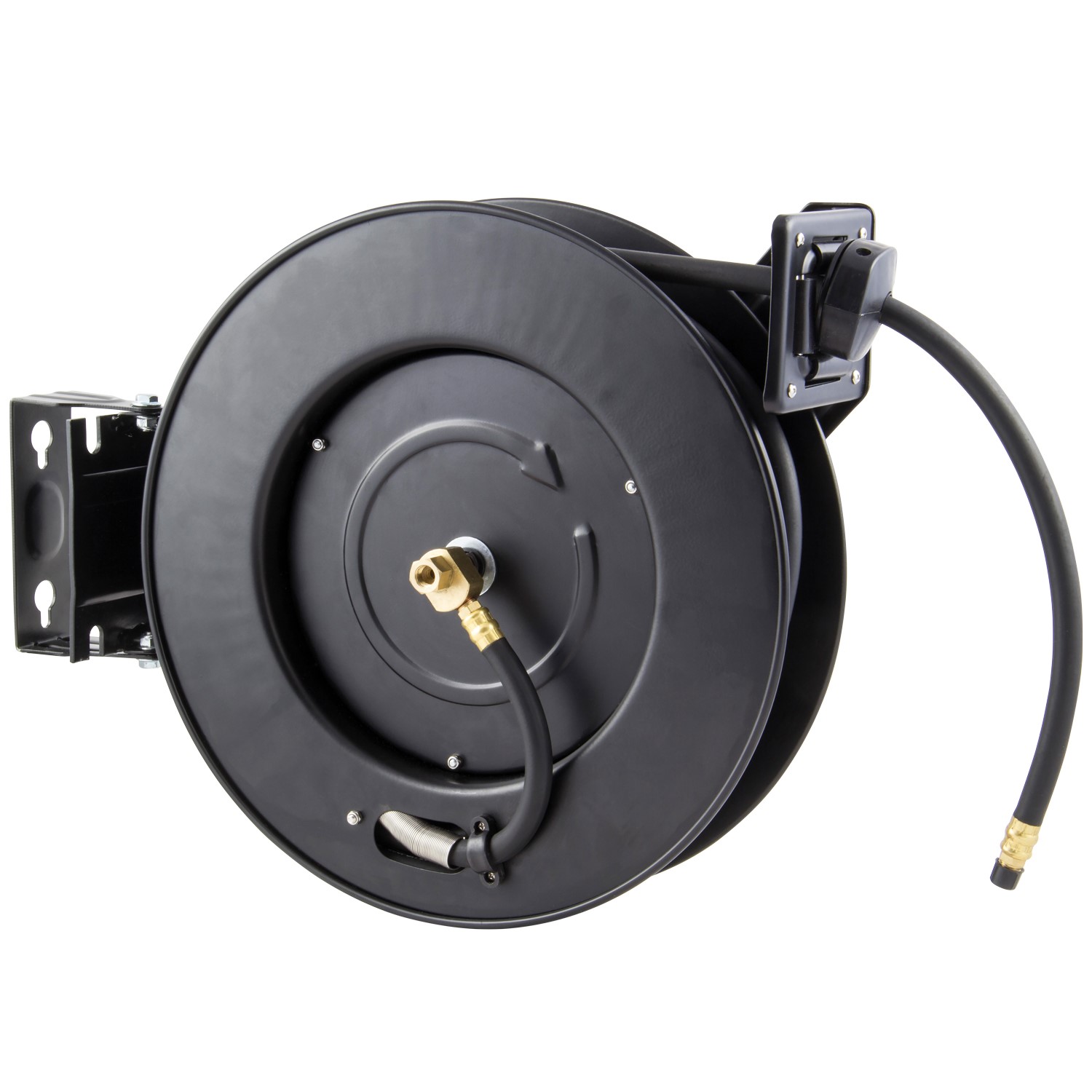

The SIP Air Hose Reel R15 offers an easy and highly durable solution for carrying compressed air from an air compressor to a wide range of different air-powered tools and equipment, offering reliability and efficiency to a max. pressure of 300psi (20bar).

This reel utilises Through Flow, ensuring it can be wound and unwound during operation by letting air through, plus a quality recoiling system for simple use.

KEY FEATURES

  •  15mtr hose length and 300psi (20bar) max. pressure
  •  Through Flow allows winding or unwinding during use
  •  Integrated bracket for fixed or swivel wall-mounting
  •  Heavy-duty metal casing for increased durability
  •  Recoiling hose for simple use and storage

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP Air Hose Reel R15 offers an easy and highly durable solution for carrying compressed air from an air compressor to a wide range of different air-powered tools and equipment, offering reliability and efficiency to a max. pressure of 300psi (20bar).

This reel utilises Through Flow technology, ensuring it can be wound and unwound during operation by letting air through the reel. This is ideal for adjusting the positioning or length of the hose during use without interruption.

A heavy-duty design complete with versatile wall-mounting bracket allows the reel to be mounted in a fixed position or swivel. The robust metal casing provides added durability in a range of environments.

Perfect for a wide range of home, trade and professional needs.

  • 15mtr hose length with 300psi (20bar) max. pressure
  • 3/8" (9.5mm) Ø inside; 9/16" (14mm) Ø outside hose sizes
  • Through Flow allows air to pass through the hose reel, meaning the hose reel can be wound and unwound before, during, and after use with added ease
  • Recoiling hose system for quick and easy operation or storage

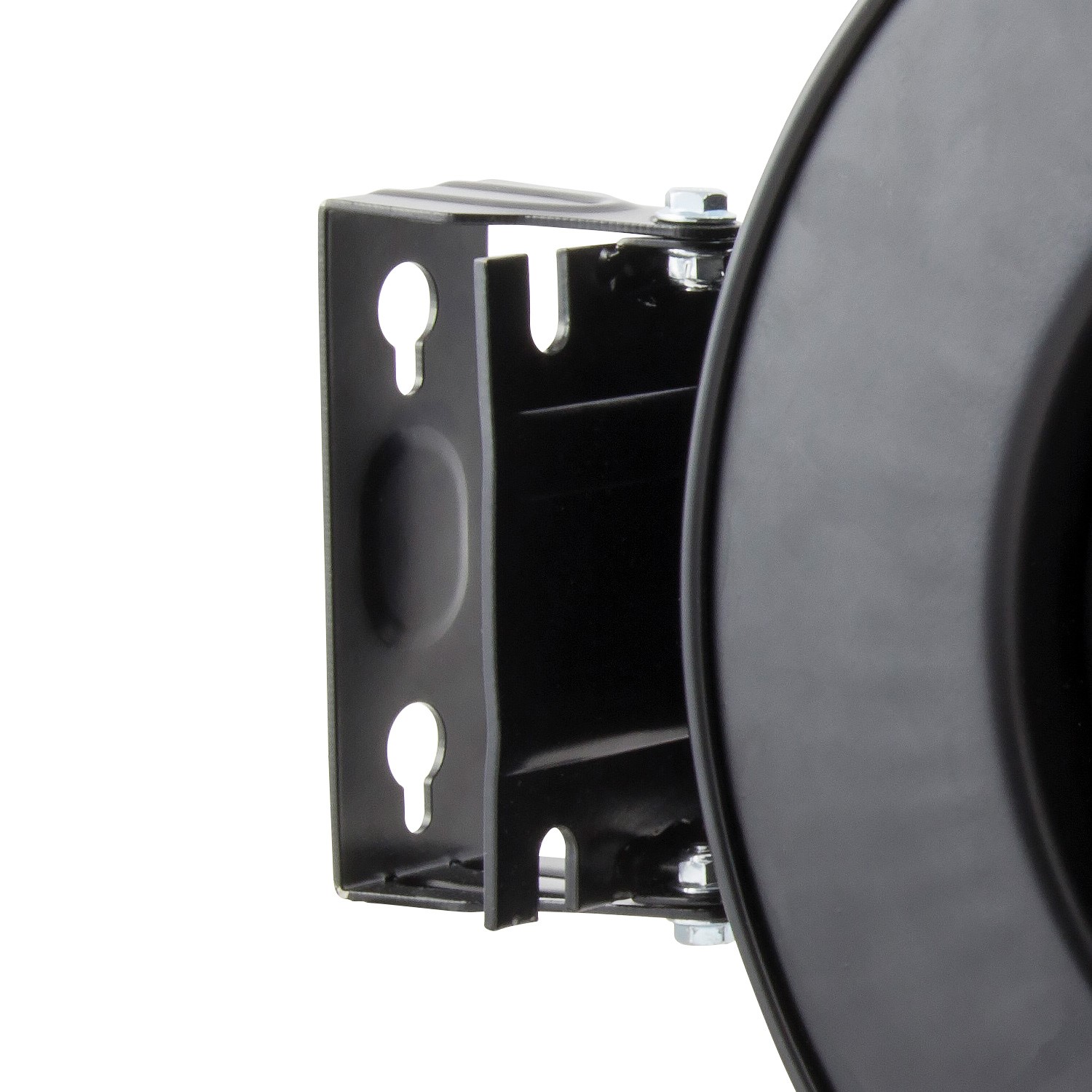

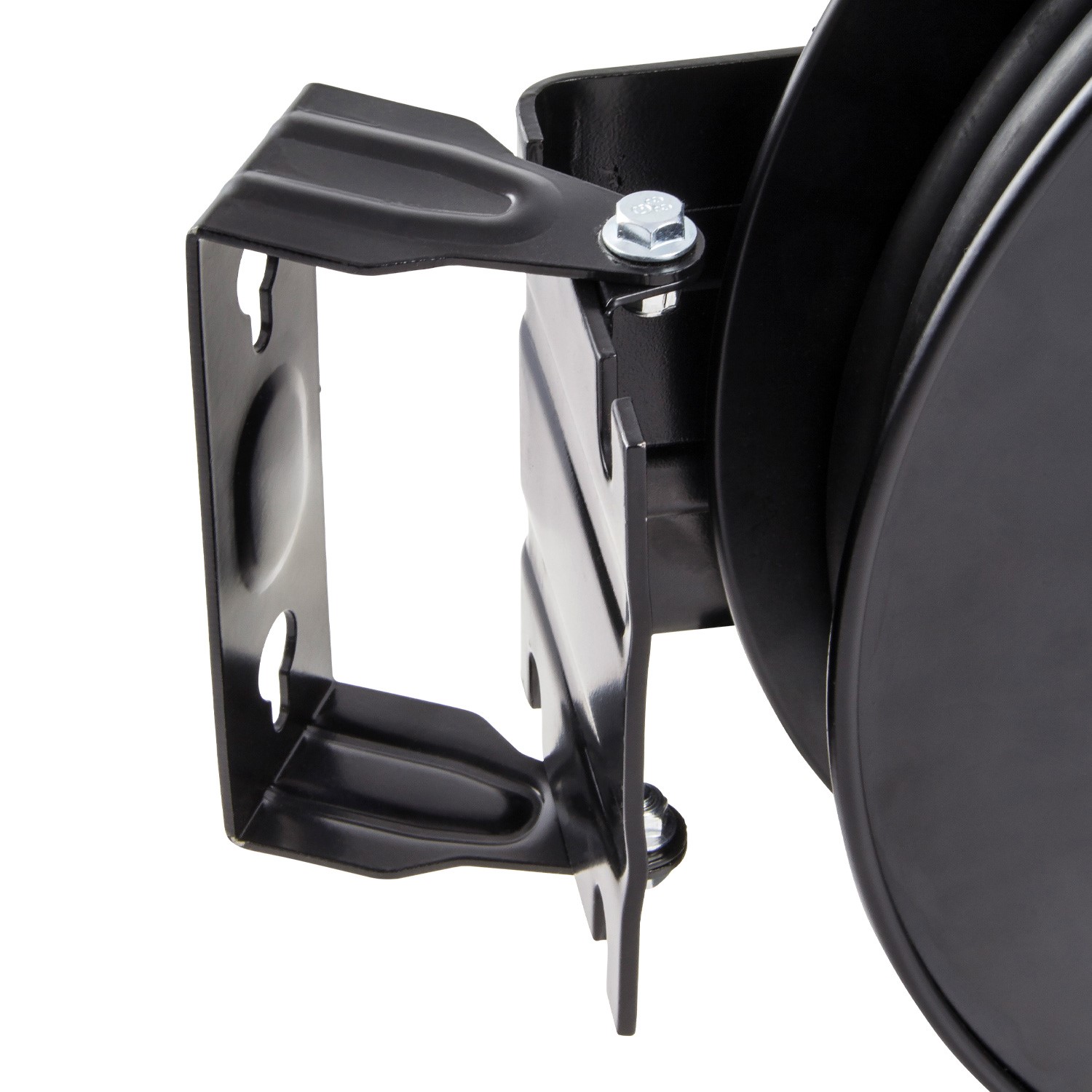

  • Fixed or swivel mounting bracket for fixing to walls
  • Heavy-duty metal casing for added durability
  • -5°C to 45°C working temperature

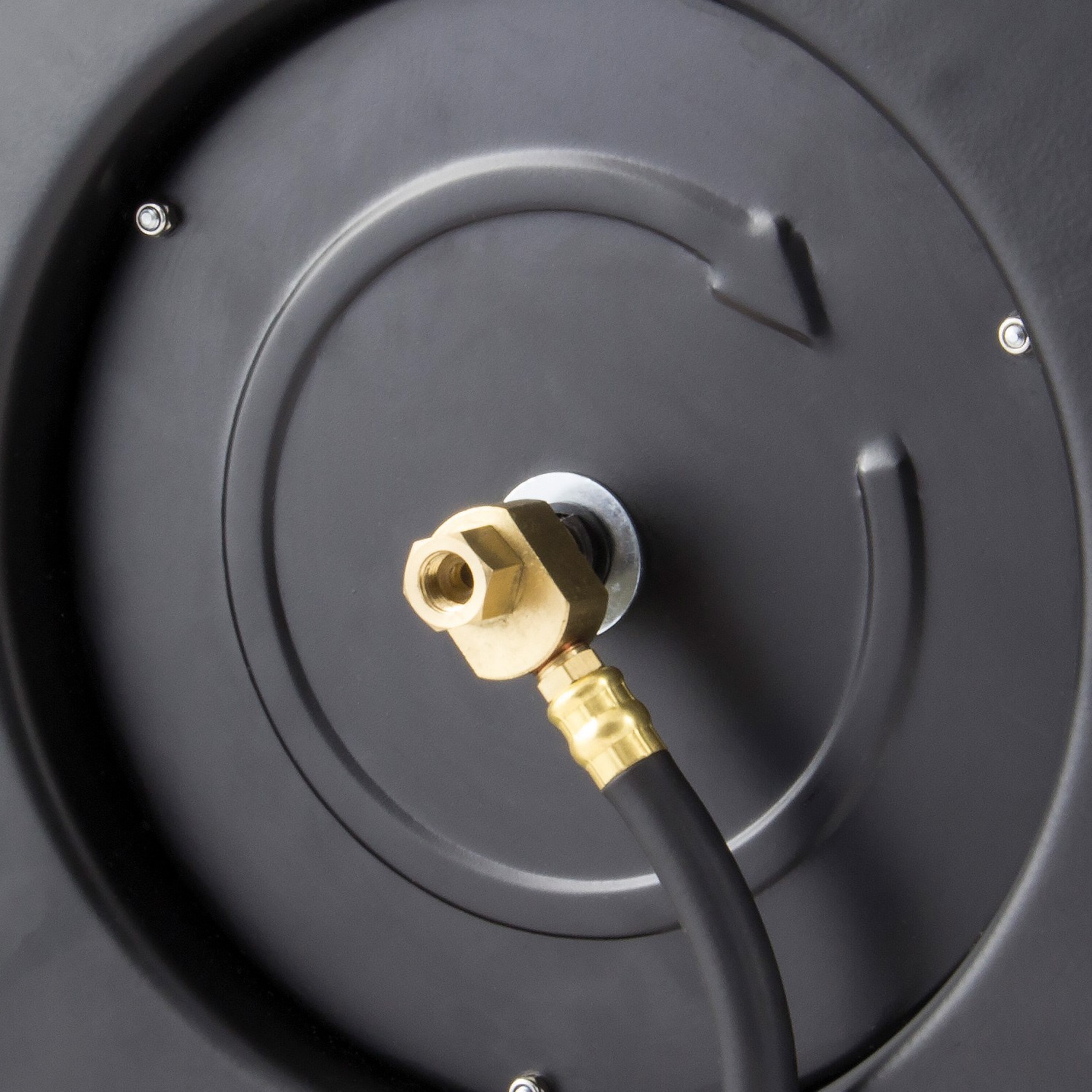

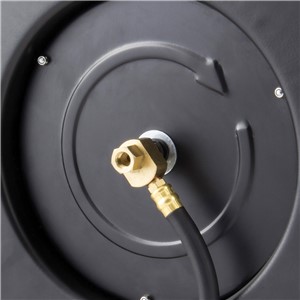

  • 1/4" BSP male hose fittings
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 07977
Hose Length: 15mtr
Inside Hose Diameter: Ø 9.5mm (3/8")
Outside Hose Diameter: Ø 14mm (9/16")
Connection Hose Length: 1mtr
Working Temperature: -5°C - 45°C
Max. Pressure: 300psi (20bar)
Hose Fitting: 1/4" BSP Male
Net Weight: 12.00kg
Gross Weight: 12.70kg
Product Dimensions: 445(H) x 550(W) x 115mm(D)
Packaged Dimensions: 530(H) x 460(W) x 180mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
