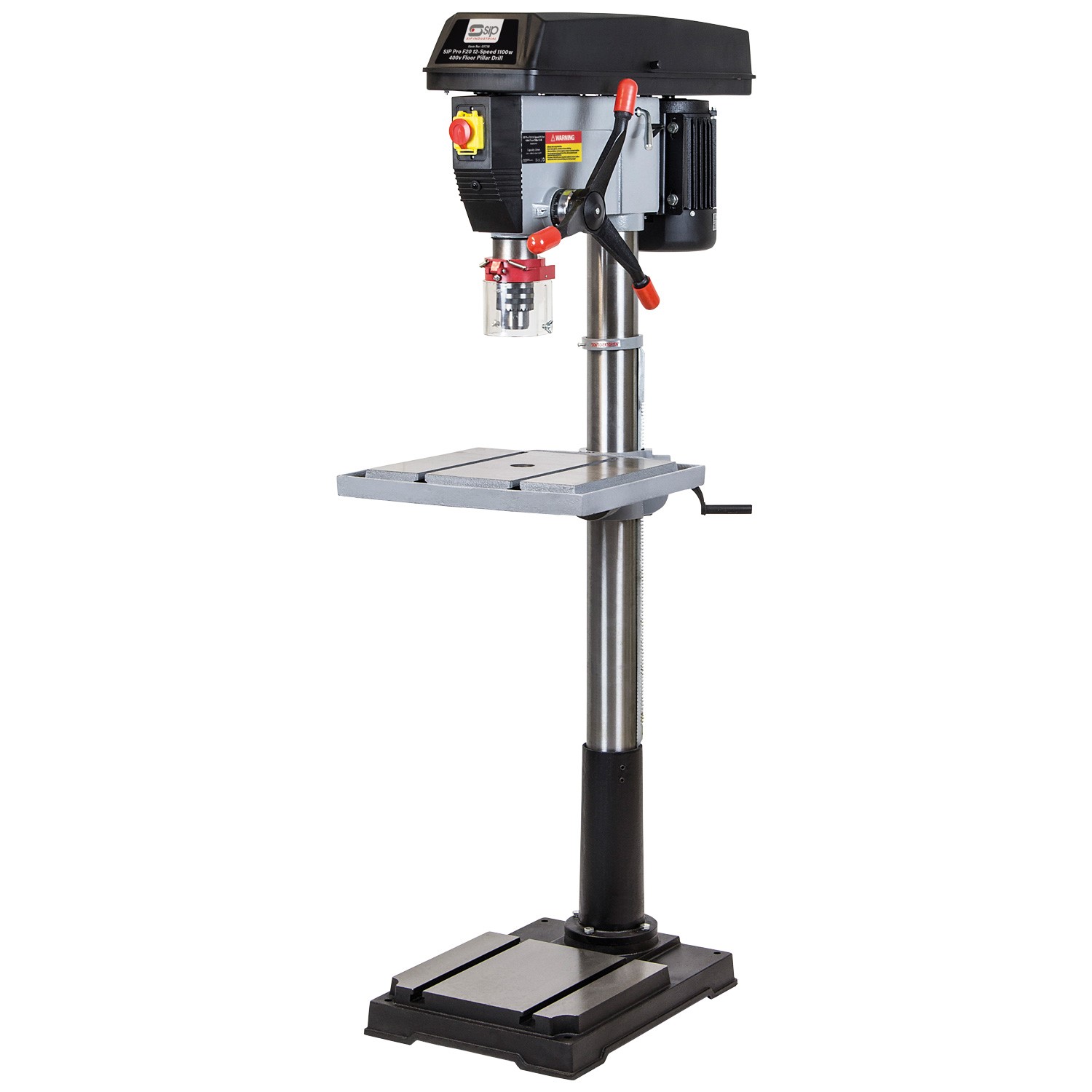

SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill

01718

SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill
Product thumbnail.

The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned to enable accurate drilling.

Plus, it's MT4 fitting allows for a larger drilling capacity.

KEY FEATURES

  • 12 spindle speeds powered by a 1100w motor from a 400v 3-phase supply
  • Supports a variety of drilling applications
  • High-power brushless induction motor
  • Fitted with drilling depth stop
  • Adjustable drill table for greater accuracy
  • Safety interlock switch for safe motor belt adjustment

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it's MT4 fitting allows for a larger drilling capacity.

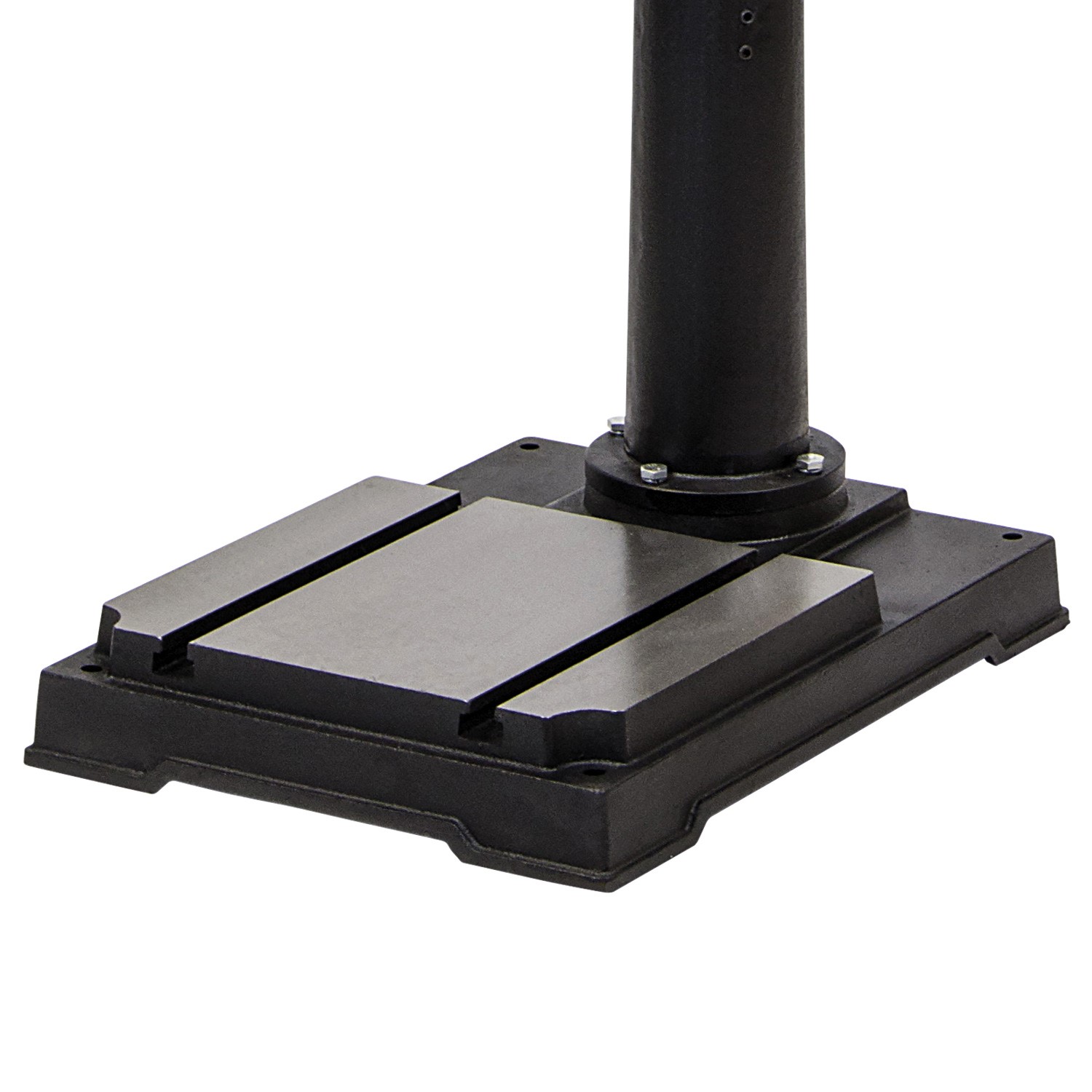

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.

Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments.

Supports a variety of drilling applications
A larger drilling capacity via an MT4 fitting is ideal for materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.

Multi-speed functionality
Allows precise control of hole sizes across the drilling spectrum.

High-power brushless induction motor
Delivers powerful performance for consistent high-quality drilling.

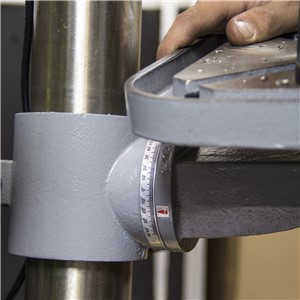

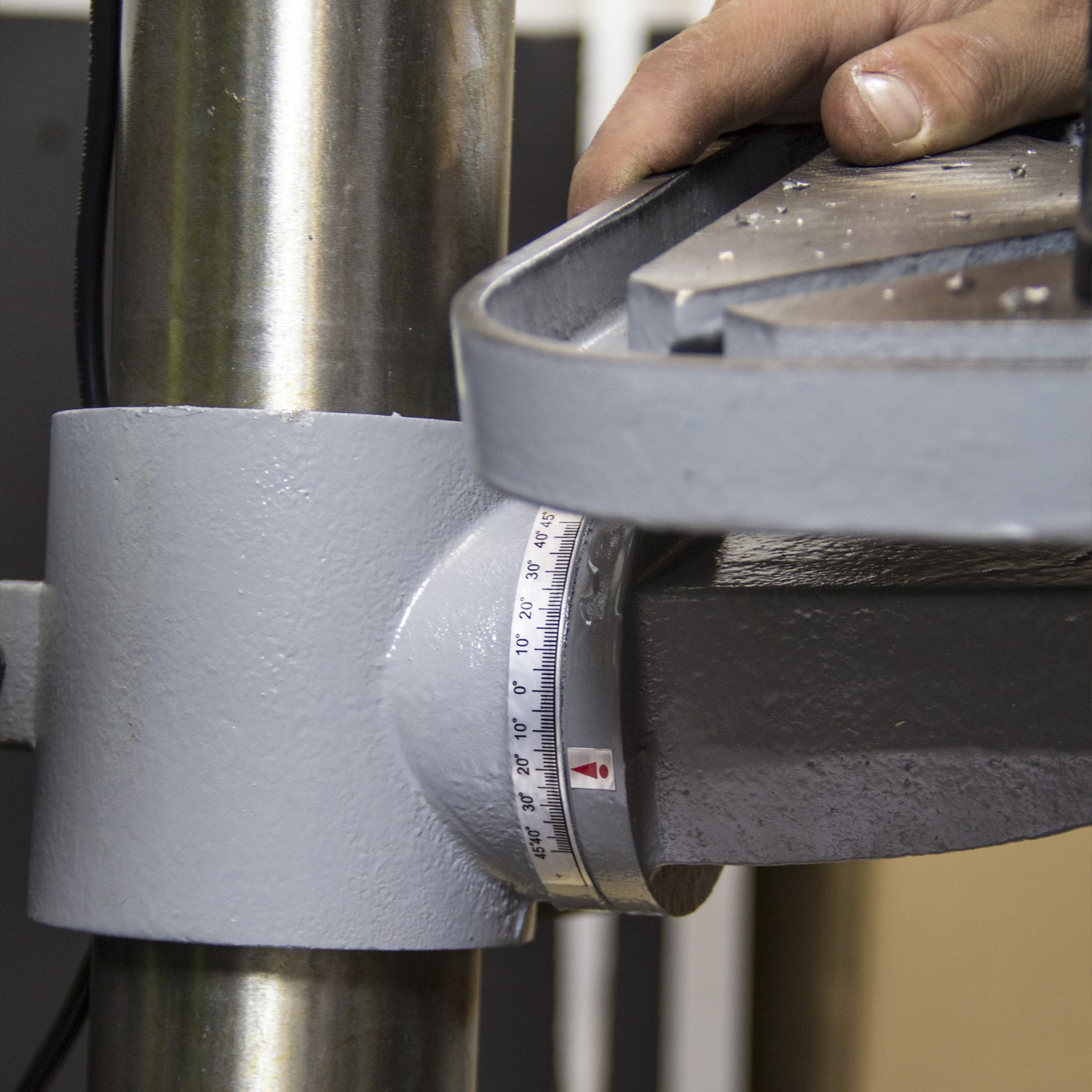

Intuitive features for ease-of-use
Adjustable drilling table and three-lever handle ensures smooth drilling force.

Fitted with drilling depth stop
Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

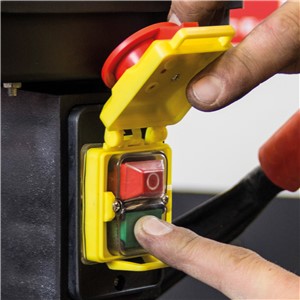

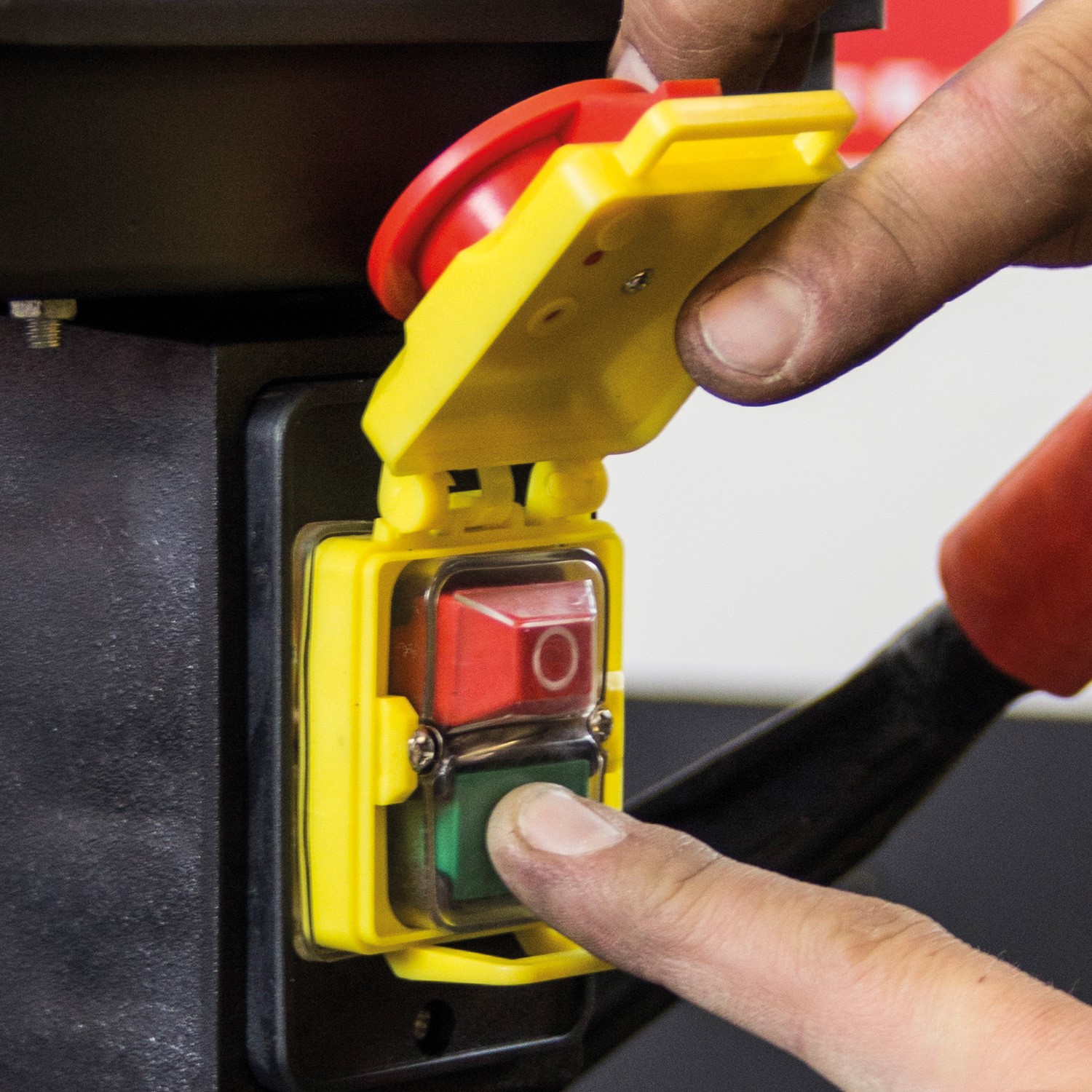

Safety interlock switch
Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.

SIP 2-Year Standard Silver Warranty | Find out more

Technical Information

ITEM NO. 01718
Input Voltage: 400v 3-PHASE
Motor Power: 1100w
No. of Speeds: 12 speeds
Speed Range: 150rpm - 2500rpm
Drill Bit Size: 5mm - 20mm
Spindle Taper: MT4
Table Size: 420mm x 470mm
Base Size: 570mm x 425mm
Column Diameter: Ø 92mm
Swing: 506mm
Height: 1720mm
Spindle Travel: 120mm
Collar Diameter: Ø 92mm
Max. Distance: 620mm (chuck to table)
1095mm (chuck to base)
Net Weight: 107.40kg
Gross Weight: 118.00kg
Product Dimensions: 1720(H) x 470(W) x 570mm(D)
Packaged Dimensions: 305(H) x 1415(W) x 650mm(D)
