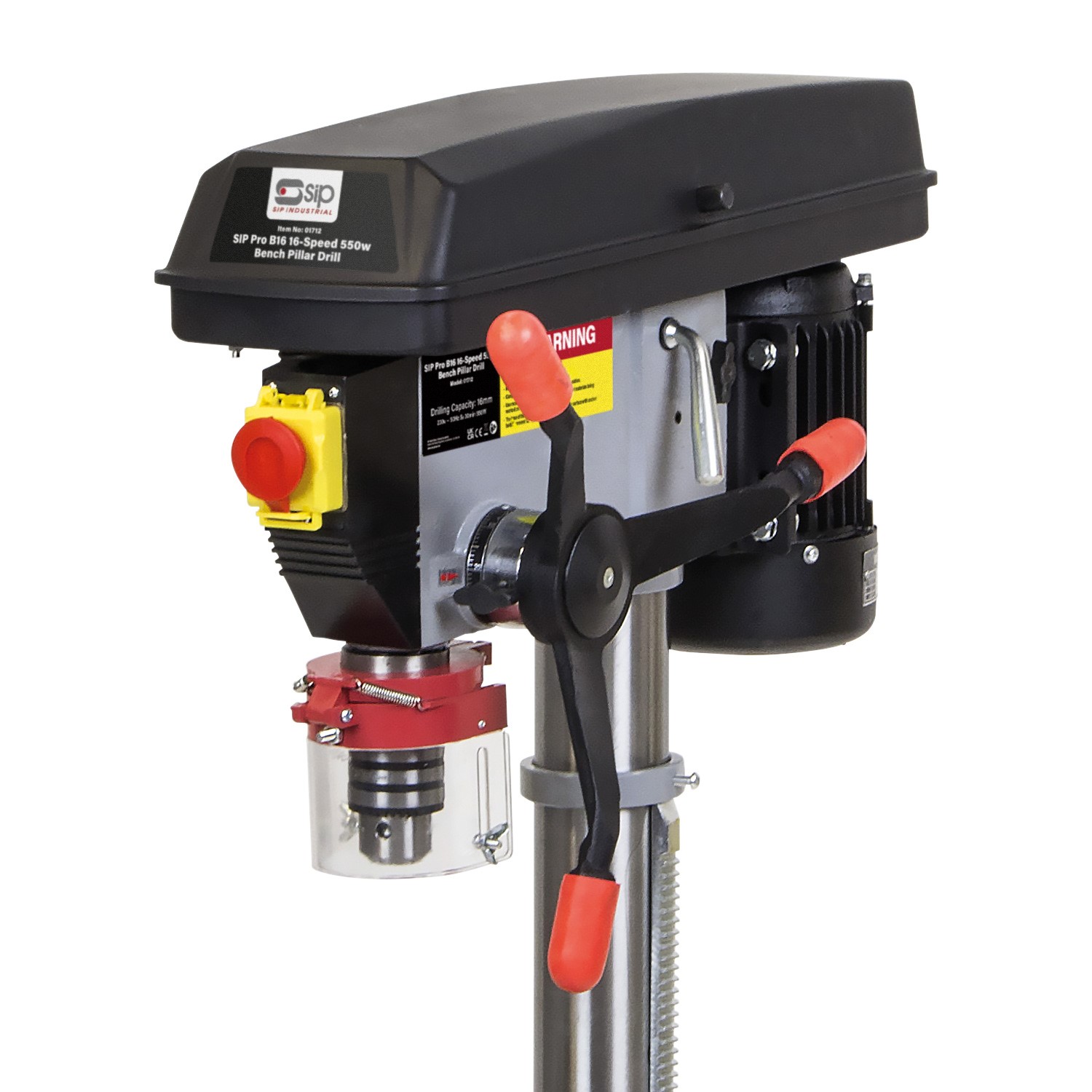

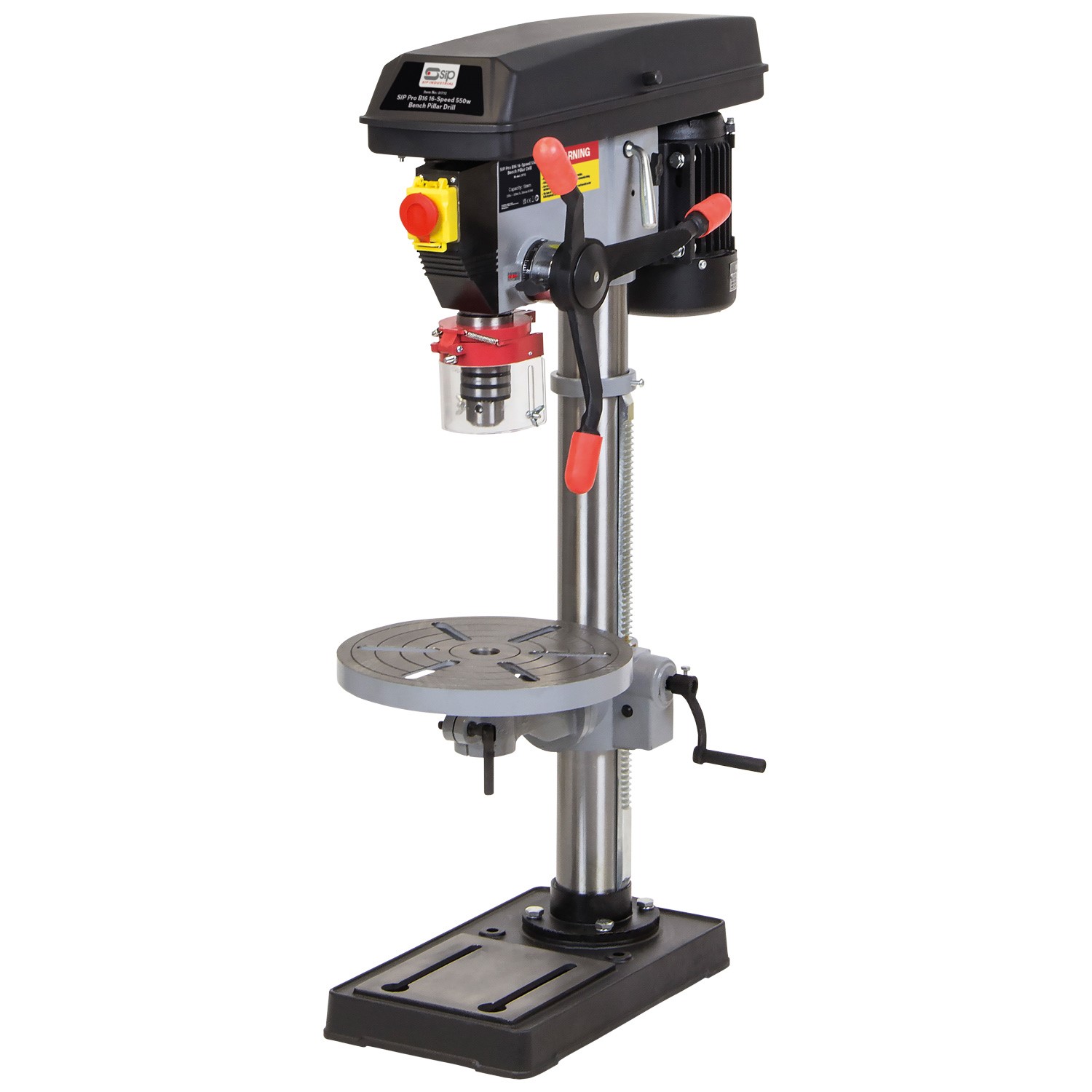

SIP Pro B16 16-Speed 550w Bench Pillar Drill

01712

SIP Pro B16 16-Speed 550w Bench Pillar DrillSIP Pro B16 16-Speed 550w Bench Pillar DrillSIP Pro B16 16-Speed 550w Bench Pillar DrillSIP Pro B16 16-Speed 550w Bench Pillar DrillSIP Pro B16 16-Speed 550w Bench Pillar DrillSIP Pro B16 16-Speed 550w Bench Pillar Drill
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

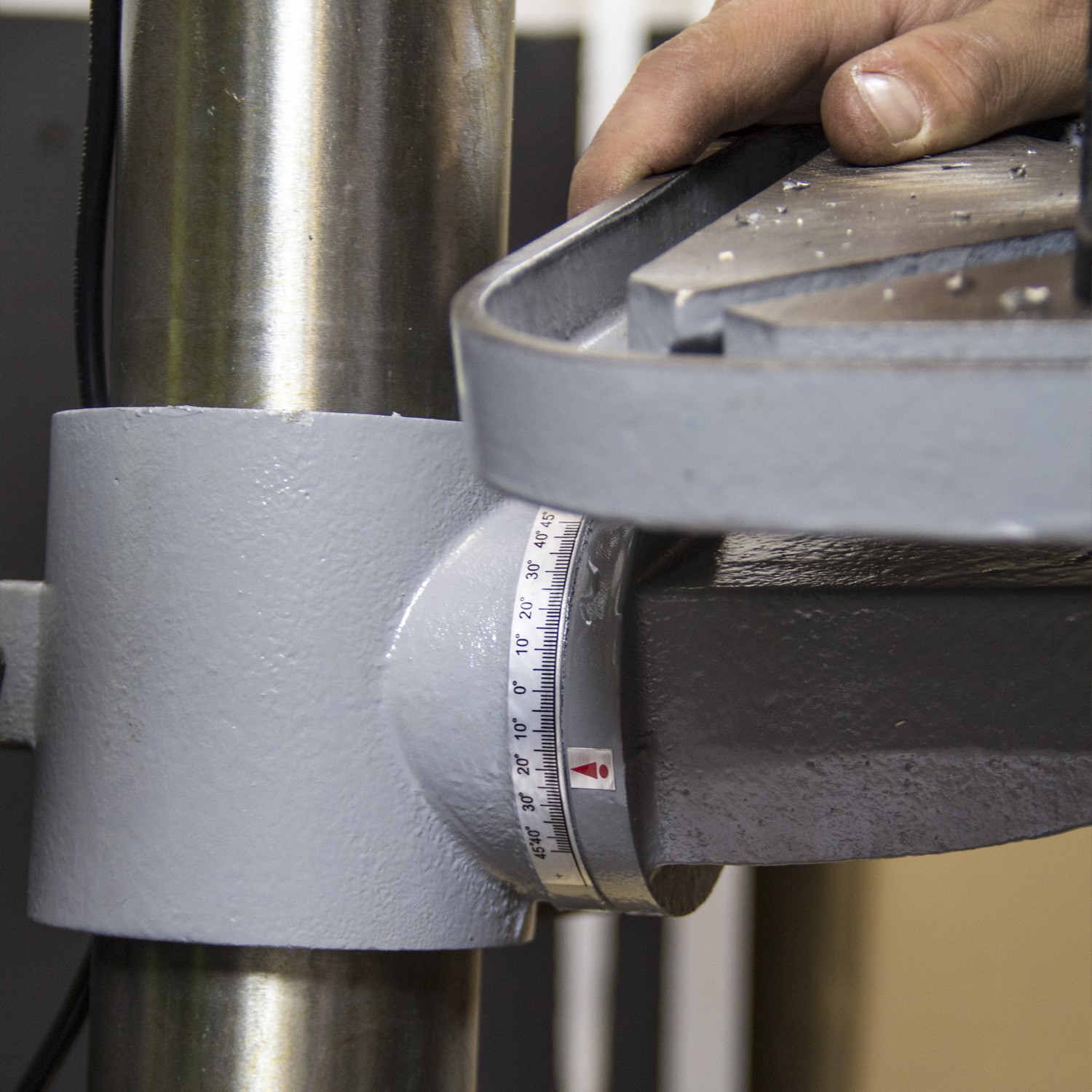

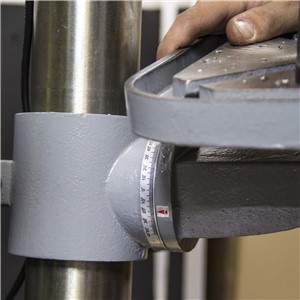

The SIP Pro B16 16-Speed 550w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned for accurate drilling.

KEY FEATURES

  •  16 spindle speeds powered by a 550w motor from a 230v (13A) supply
  •  Supports a variety of drilling applications
  •  High-power brushless induction motor
  •  Fitted with drilling depth stop
  •  Adjustable drill table for greater accuracy
  •  Safety interlock switch for safe motor belt adjustment

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP Pro B16 16-Speed 550w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned to enable accurate drilling.

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for a range of workshop applications with limited floor space.

Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind, batch and general drilling applications, manufacturing gates, rails and trailers, plus metalwork and woodwork environments.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

SUPPORT A VARIETY OF DRILLING APPLICATIONS

  • Compatible with materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.

MULTI-SPEED FUNCTIONALITY

  • Allows precise control of hole sizes across the drilling spectrum.

HIGH-POWER BRUSHLESS INDUCTION MOTOR

  • Delivers powerful performance for consistent high-quality drilling.

INTUITIVE FEATURES FOR EASE-OF-USE

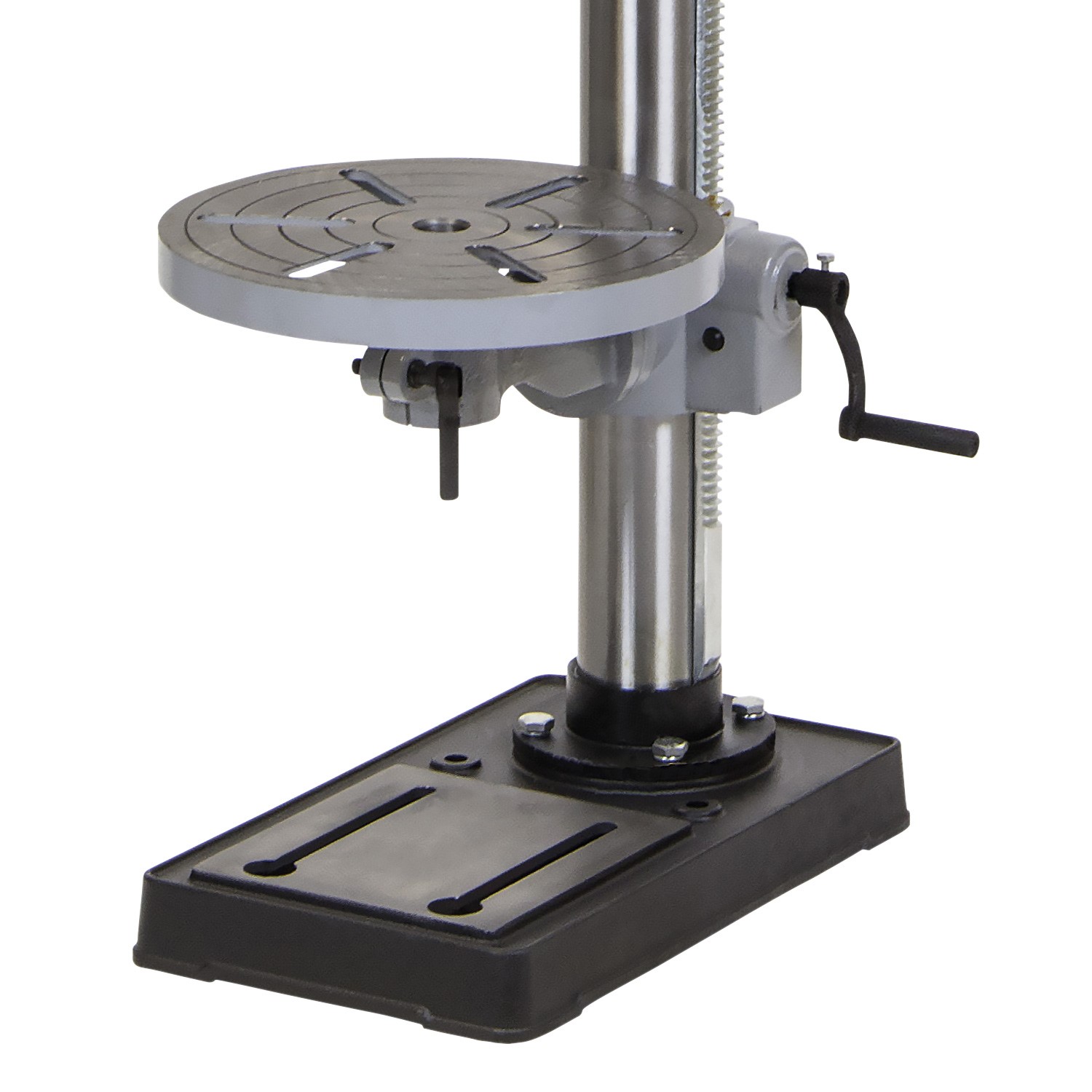

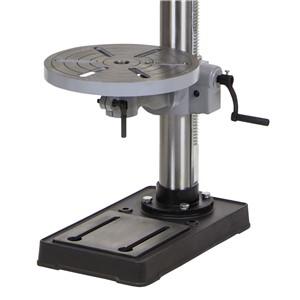

  • Adjustable drilling table and 3-lever handle ensures smooth drilling force.

FITTED WITH DRILLING DEPTH STOP

  • Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

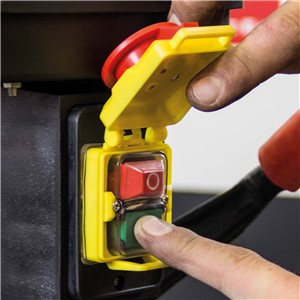

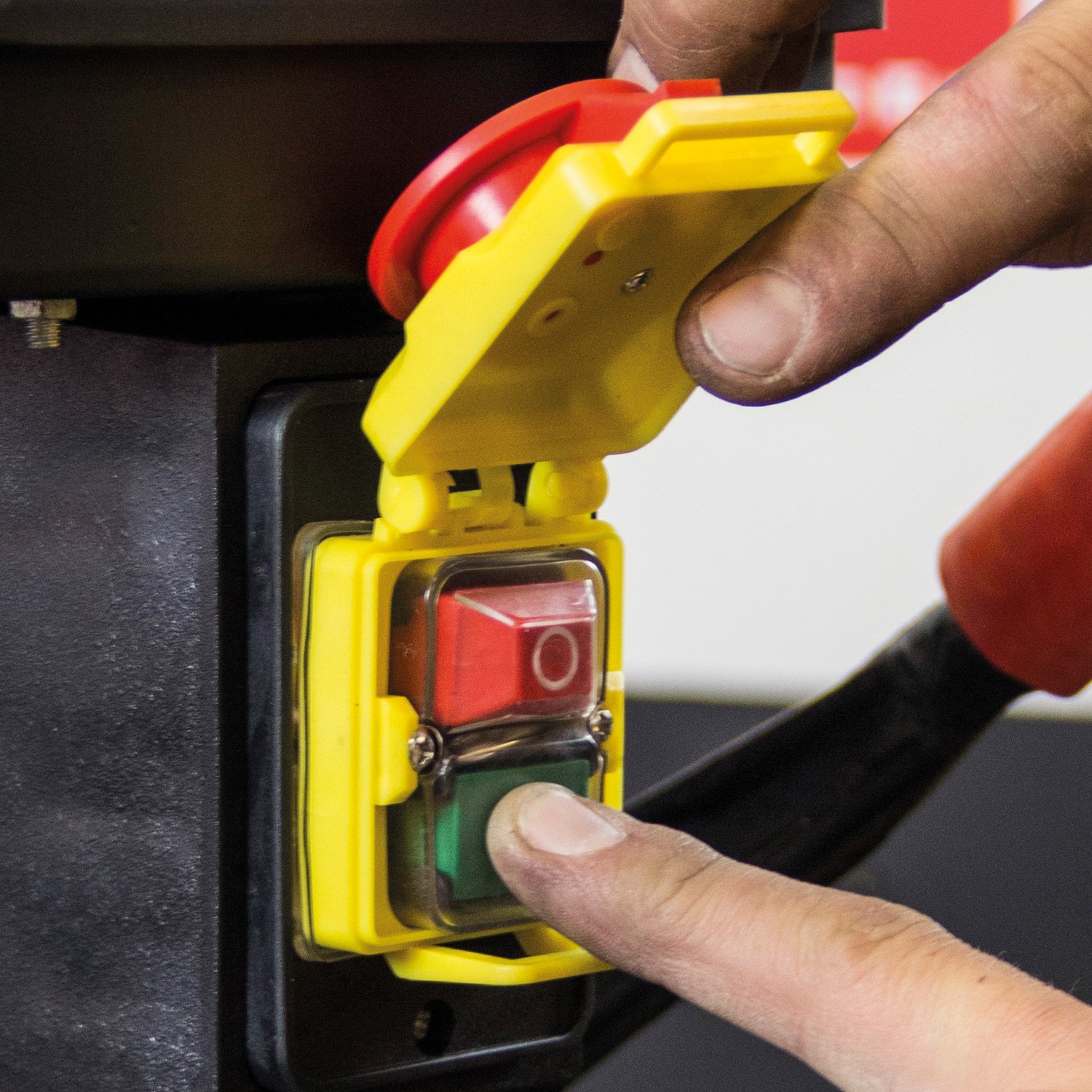

SAFETY INTERLOCK SWITCH

  • Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.

Technical Information

ITEM NO. 01712
Input Voltage: 230v (13A)
Motor Power: 550w
No. of Speeds: 16 speeds
Speed Range: 220rpm - 2800rpm
Drill Bit Size: 3mm - 16mm
Max. Drilling Capacity: 16mm
Spindle Taper: MT2
Table Size: Ø 290mm
Base Size: 410mm x 245mm
Column Diameter: Ø 72mm
Swing: 325mm
Height: 975mm
Spindle Travel: 80mm
Collar Diameter: Ø 72mm
Max. Distance: 360mm (chuck to table)
530mm (chuck to base)
Net Weight: 34.00kg
Gross Weight: 35.30kg
Product Dimensions: 980(H) x 290(W) x 410mm(D)
Packaged Dimensions: 270(H) x 450(W) x 770mm(D)
