SIP 3" Heavy-Duty Belt Linisher

01948

Click on image to enlarge

SIP 3" Heavy-Duty Belt Linisher

01948

The SIP 3" Belt Linisher is designed for removing sharp edges and burrs from workpieces and finishing metalwork products. This includes cleaning and grinding of products, tubes and profiles. Ideal for metals including mild steel, aluminium and stainless steel.

With a high-quality and long-lasting zirconium bonded belt, this linisher is essential for professional metalwork, engineering and fabrication workshop processes.

KEY FEATURES

3-point belt access at wheel, platen top and full platen for versatility
High-quality and long-lasting 2000mm x 75mm zirconium bonded belt
Quick-release belt via easy-access panel for quick belt replacement
Adjustable tool supports and angles for accurate workpiece positioning
Heavy-duty build with steel pedestal stand for comfortable working height
Enhanced safety features include NVR switch, eye protection and spark trap

SIP 2-Year Standard Silver Warranty* | Find out more

BUY NOW

Full Specification

The SIP 3" Belt Linisher is designed for removing sharp edges and burrs from workpieces and finishing metalwork products. This includes cleaning and grinding of products, tubes and profiles. Ideal for metals including mild steel, aluminium and stainless steel.

With a high-quality and long-lasting zirconium bonded belt, this linisher is essential for professional metalwork, engineering and fabrication workshop processes.

Applications & uses: Ideal for removing sharp edges and burrs from metal pieces. Suitable for finishing mild steel, aluminium or stainless steel metalwork items.

What's in the box?: 1x SIP 3" Belt Linisher.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

3-POINT BELT ACCESS FOR VERSATILE USE IN A VARIETY OF LINISHING APPLICATIONS

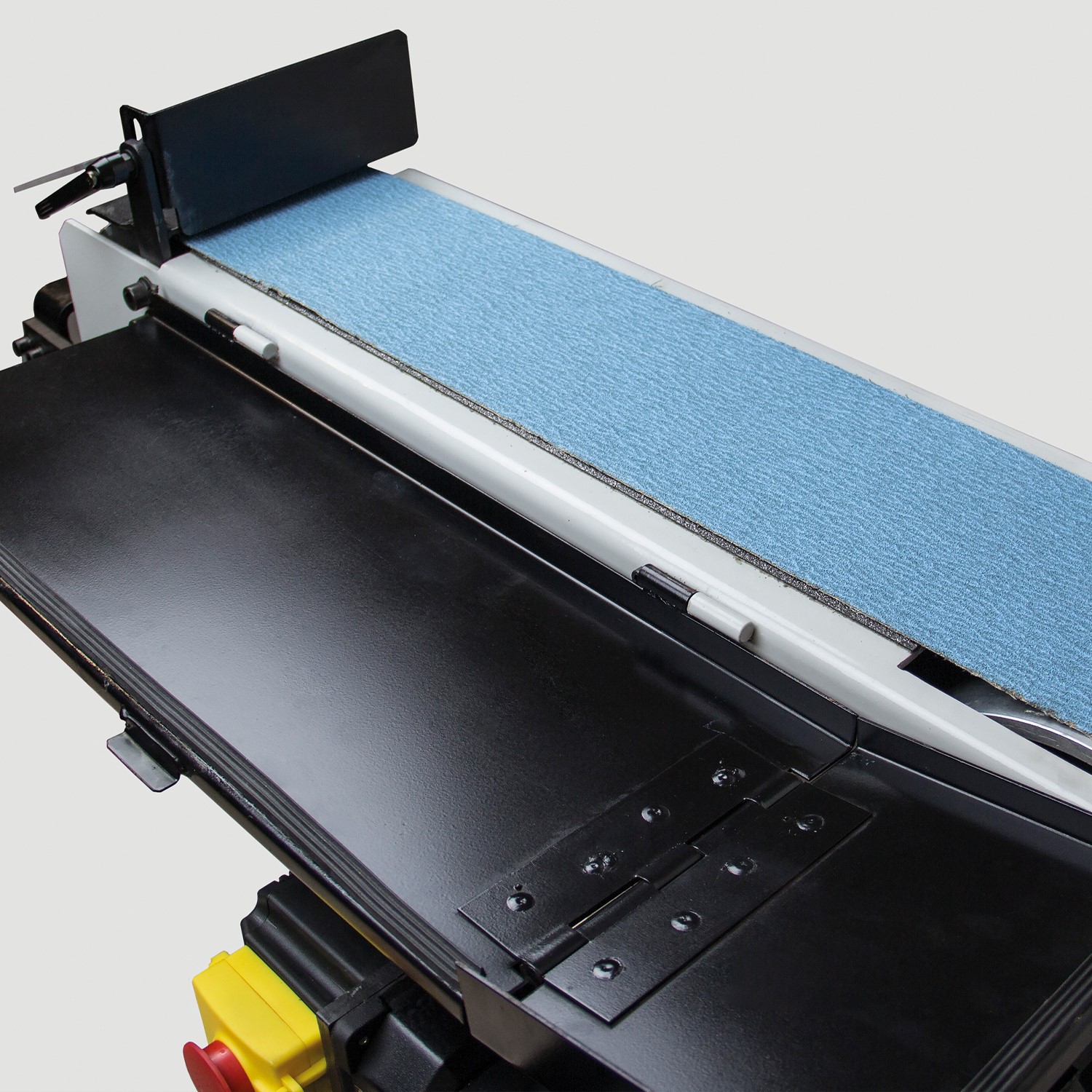

This versatile machine has 3 accessible working points (wheel, platen top and full platen) for a range of linishing tasks. 34mtr/sec belt speed for robust application use.

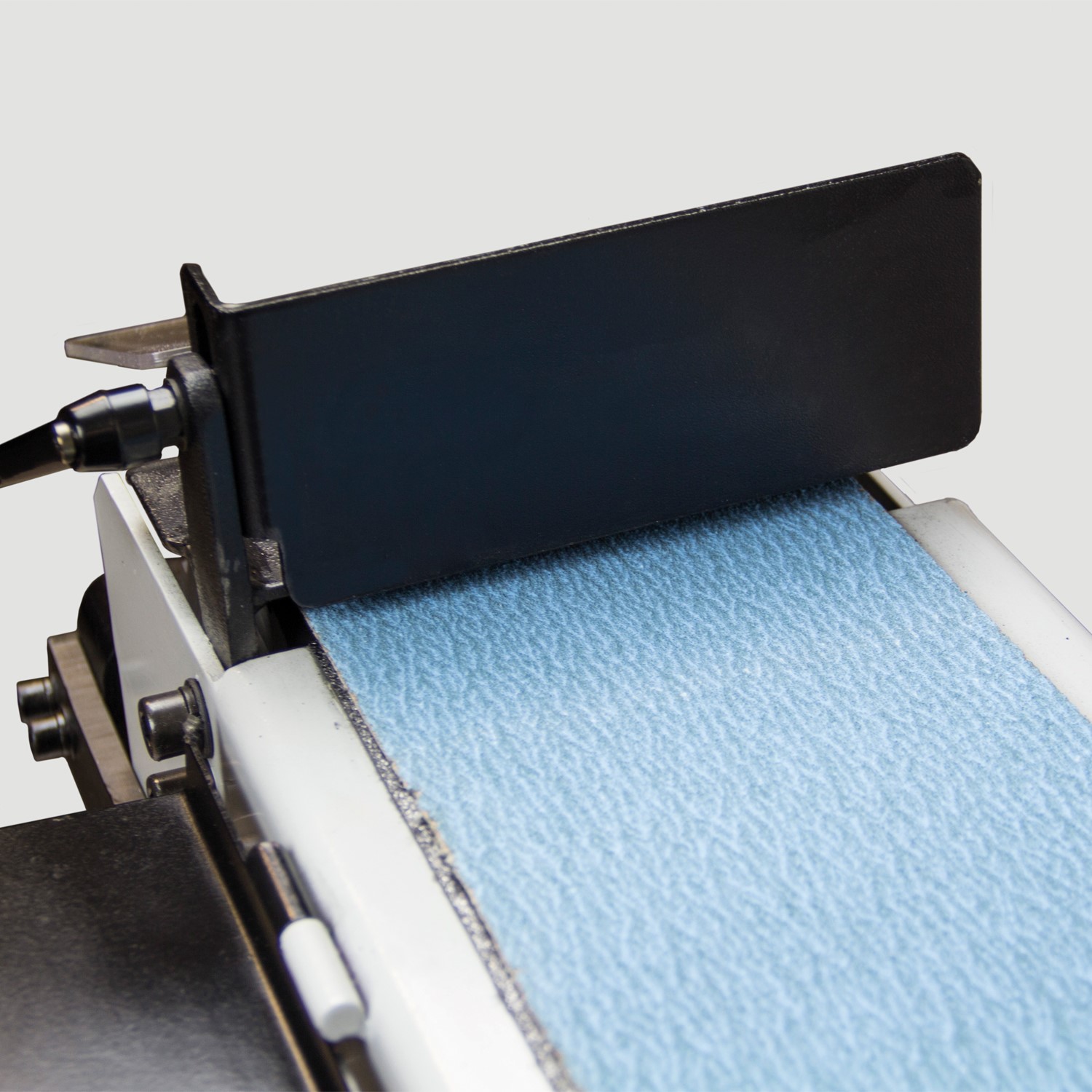

An adjustable tool support ensures workpiece makes accurate contact with the wheel. An adjustable belt tracker is fitted to ensure abrasive belt is centralised at all times.
The linisher head can also tilt to accommodate a variety of material lengths and sizes.

2000MM X 75MM ZIRCONIUM BONDED BELT OFFERS SUPERIOR DURABILITY & HEAT RESISTANCE IN USE

Long-lasting zirconium bonded belt for smoothing and finishing a variety of metal types. This includes mild steel, aluminium and stainless steel.

QUICK-RELEASE BELT CHANGES VIA ACCESS PANEL HELPS REDUCE MACHINE DOWNTIME

The abrasive zirconium bonded belt can be quickly released and replaced using an easy-access panel.

FLOOR-MOUNTED DESIGN USING SUPPLIED HEAVY-DUTY STEEL PEDESTAL STAND

Purpose-built steel stand allows the linisher to be mounted at a comfortable height.
This makes the linisher ideal for a variety of workshop environments.

ENHANCED SAFETY FEATURES

Fitted with an NVR switch, adjustable eye protection and spark trap for greater user safety.

Technical Information

ITEM NO.	01948
Input Supply:	400v 3-PHASE
Motor Power:	3kW (4hp)
Belt Size / Grade:	2000mm x 75mm / 80G
Belt Speed:	34mtr/sec
Flat Grinding Height:	530mm
Contact Wheel Size:	200mm x 75mm
Working Height:	1240mm (Contact Wheel)
Net Weight:	84.8kg
Gross Weight:	96.1kg
Product Dimensions:
Packaged Dimensions	545(H) x 1150(W) x 560mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.
