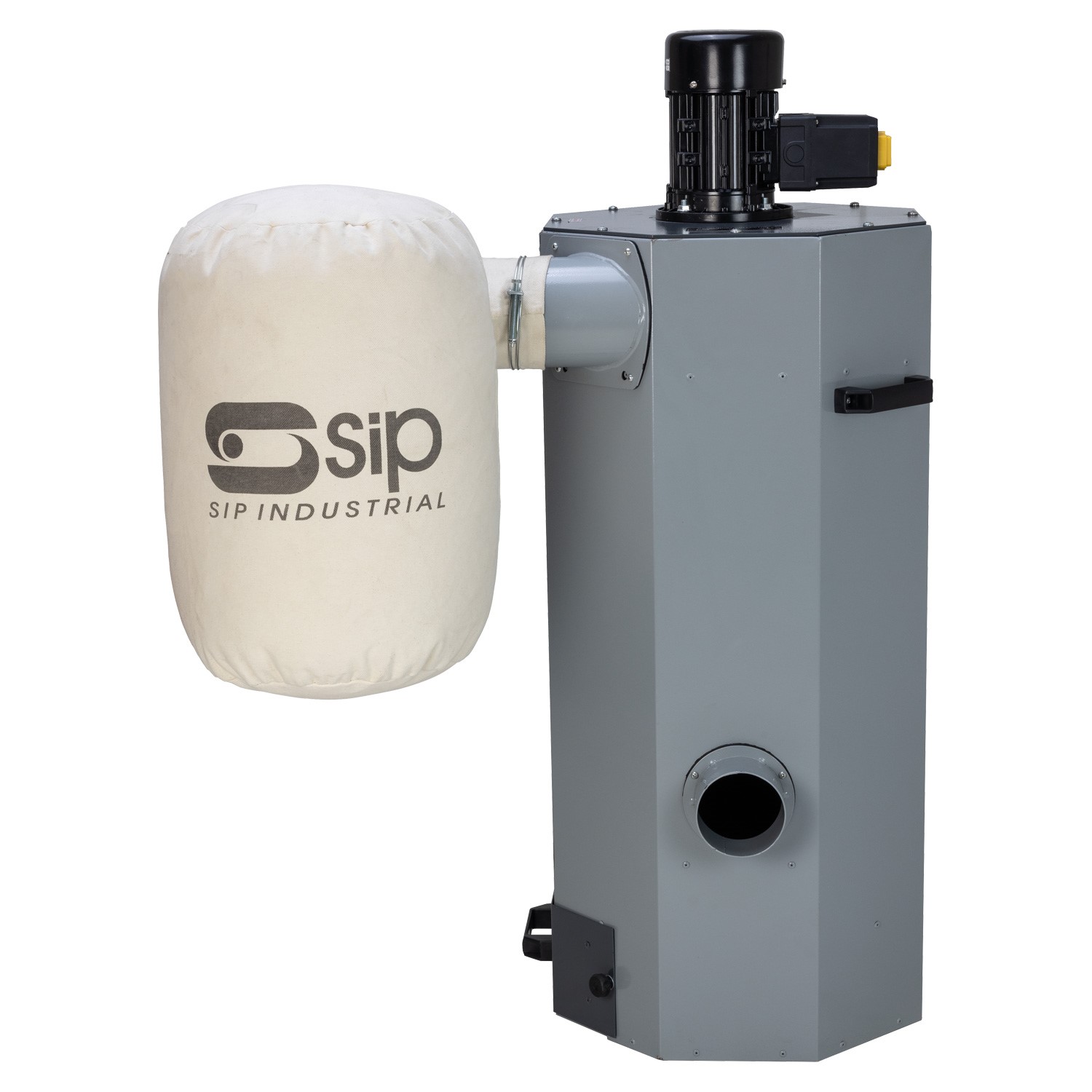

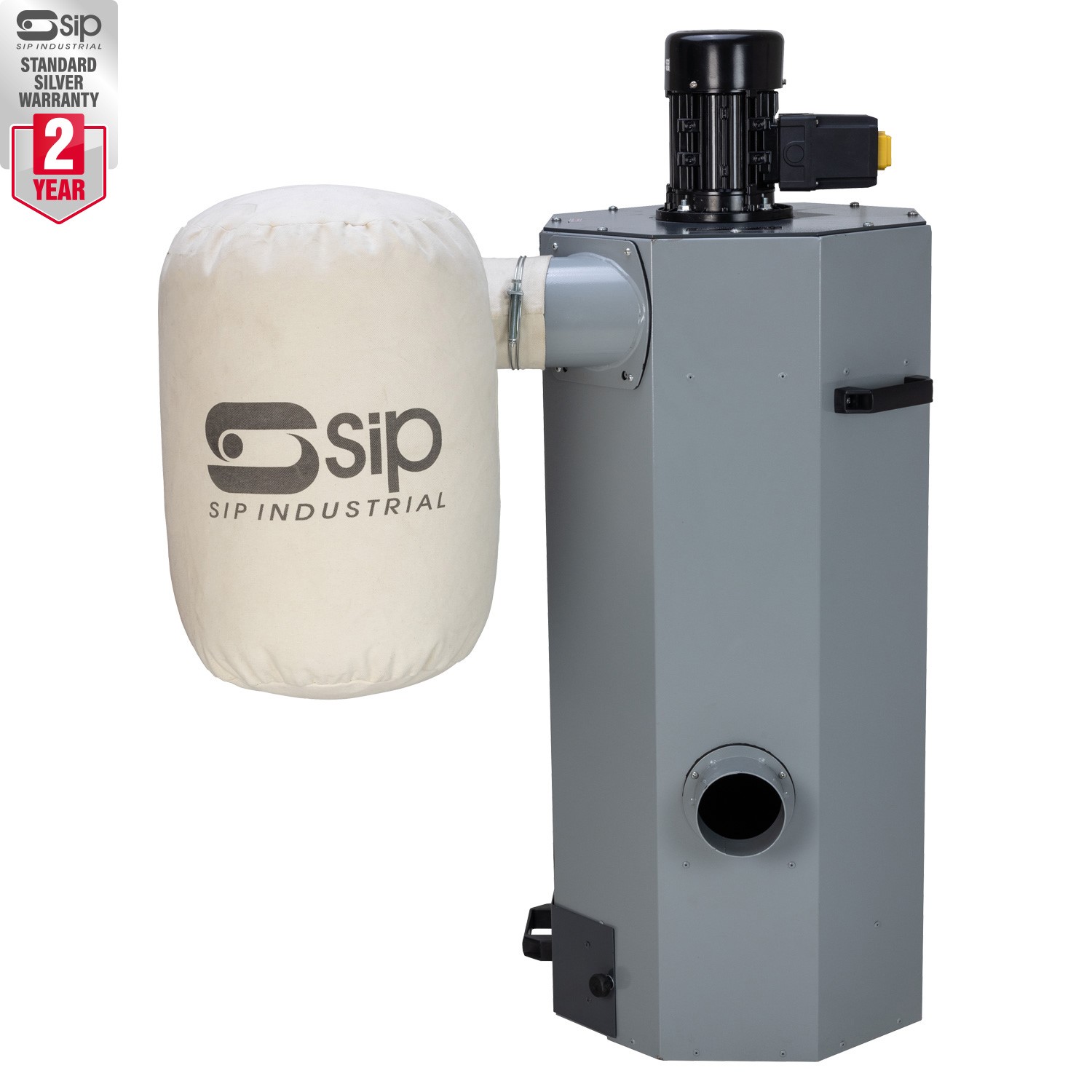

SIP Metal Dust Collector

01996

Click on image to enlarge

SIP Metal Dust Collector

01996

The SIP Metal Dust Collector delivers powerful airflow for at-source metal grinding extraction in workshop or manufacturing environments. Compatible with a variety of grinding, linishing and fettling equipment, this easy-to-manoeuvre dust collector is suitable for processing ferrous and non-ferrous metals and stainless steel.

SIP Dust Collection systems are essential for safely collecting metal dust and particles during metalwork processes.

KEY FEATURES

Powerful brushless induction motor (0.75kW/1hp)
High-powered air impeller
Two collection inlets
Easy-access collection tray

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP Metal Dust Collector delivers powerful airflow for at-source metal grinding extraction in workshop or manufacturing environments. Compatible with a variety of grinding, linishing and fettling equipment, this easy-to-manoeuvre dust collector is suitable for processing ferrous and non-ferrous metals and stainless steel.

SIP Dust Collection systems are essential for safely collecting metal dust and particles during metalwork processes.

Applications & uses: Compatible with SIP Linishers and SIP Bench Grinders. Suitable for use with fettling tables. Suitable for ferrous, non-ferrous metals, plus stainless steel.

SIP 2-Year Standard Silver Warranty | Find out more

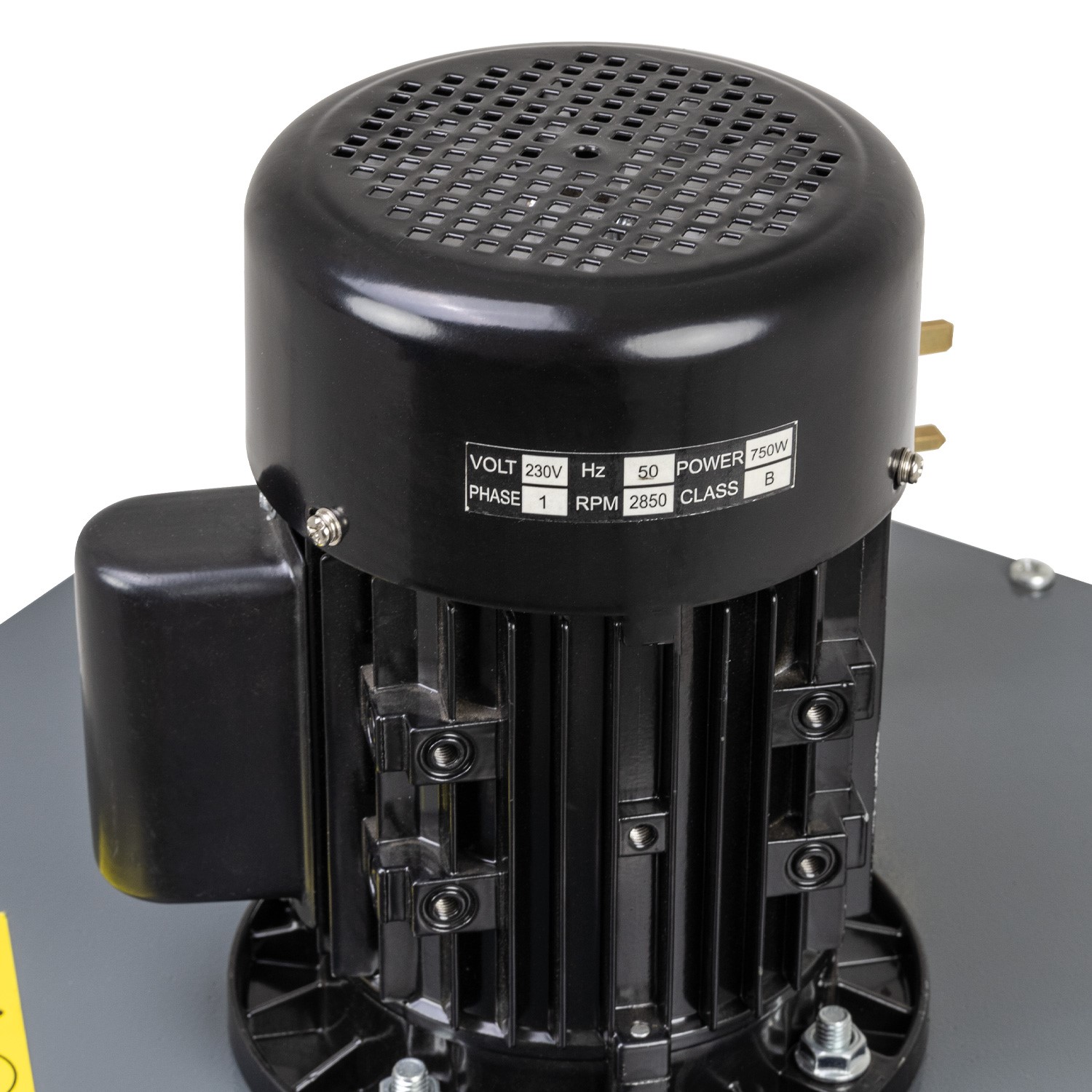

Powerful brushless induction motor (0.75kW/1hp)
Fitted with a high-efficiency, low maintenance motor for heavy-duty, long life use.

High-powered air impeller

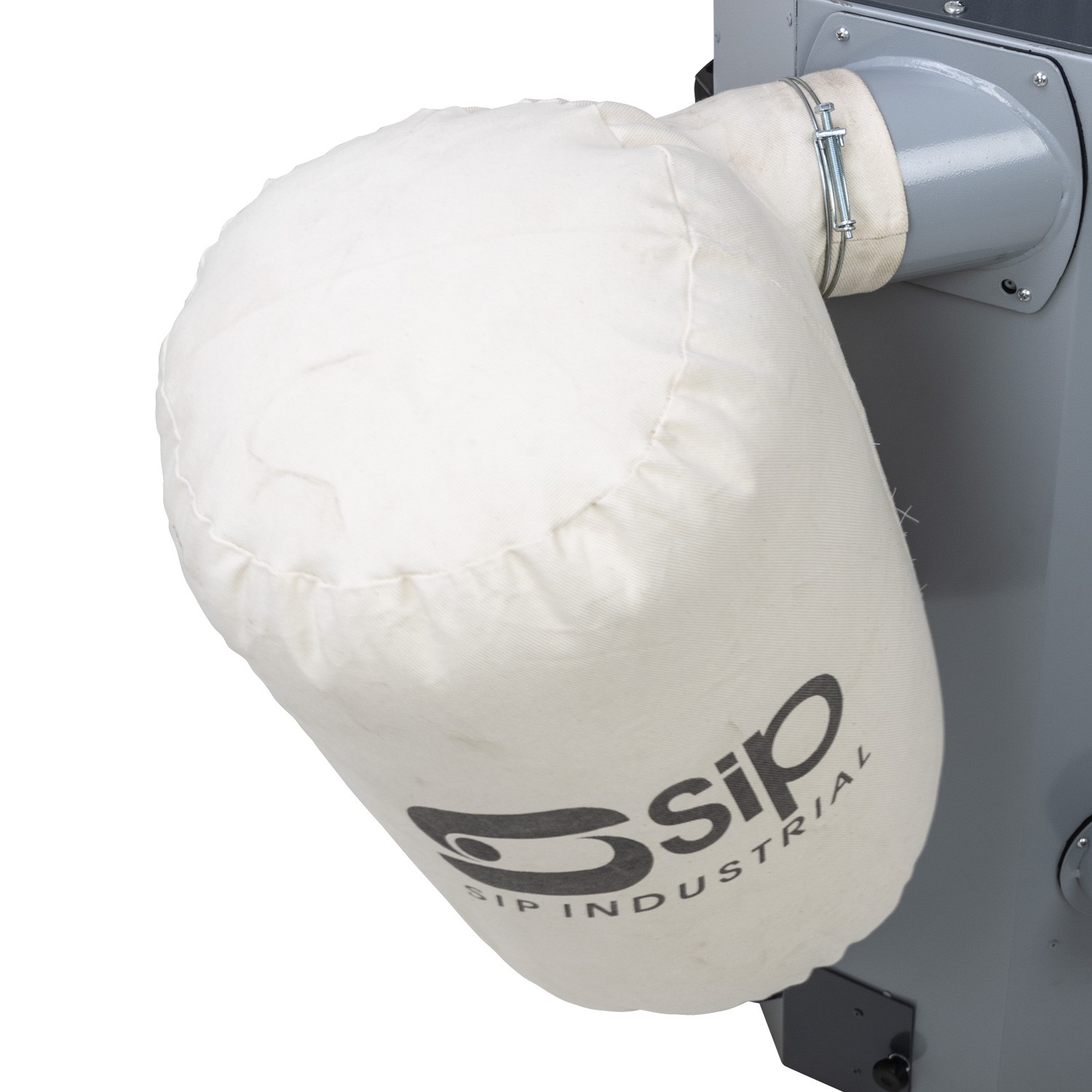

The fitted motor powers an impeller which generators 1100 cubic metres of volumetric flow to collect dust and particles into a flame-retardant bag.

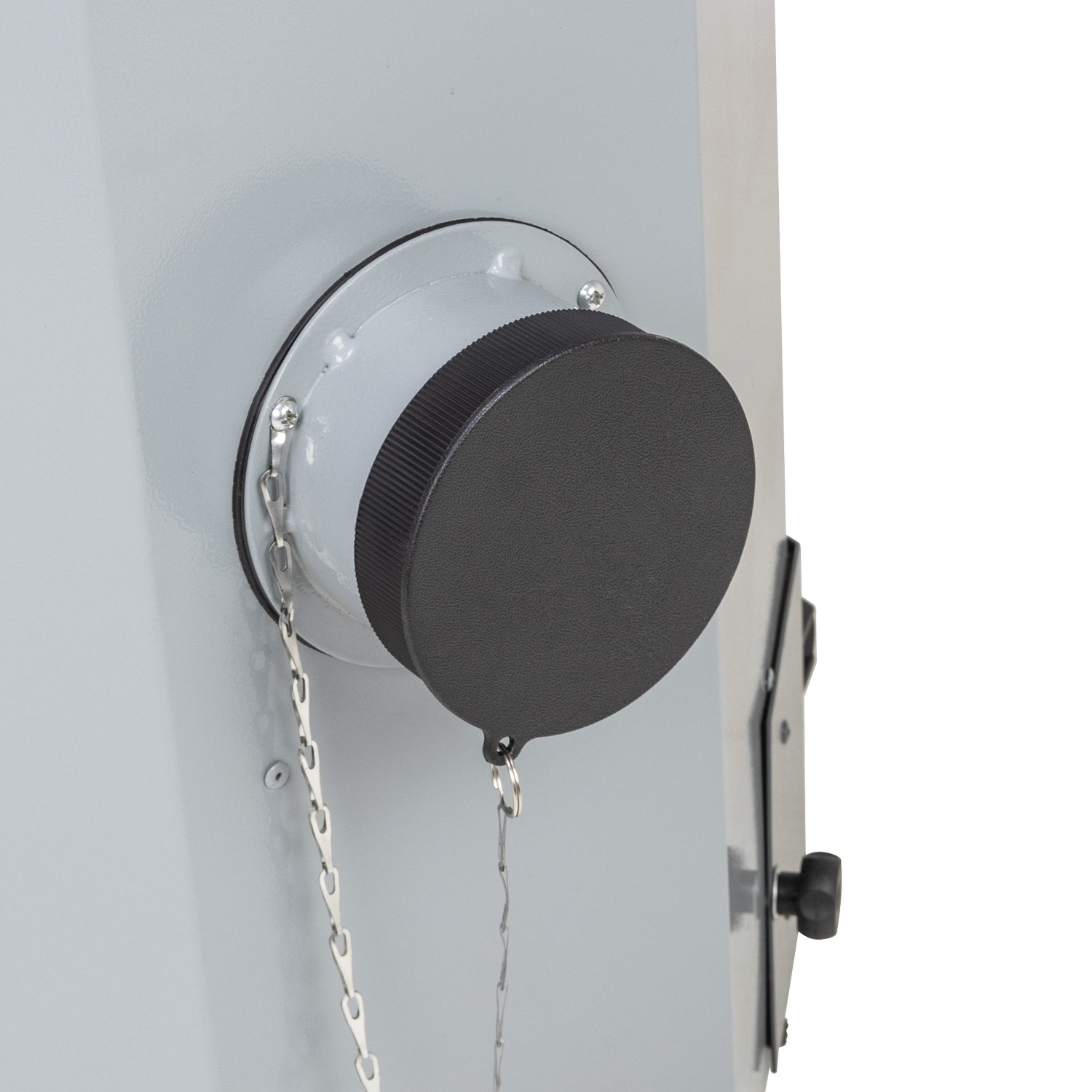

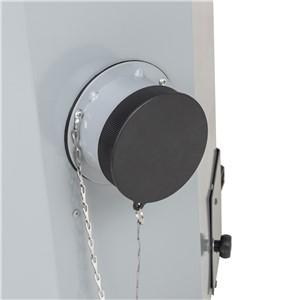

Two collection inlets
Two port outlets allow collection of materials from more than one machine at the same time.

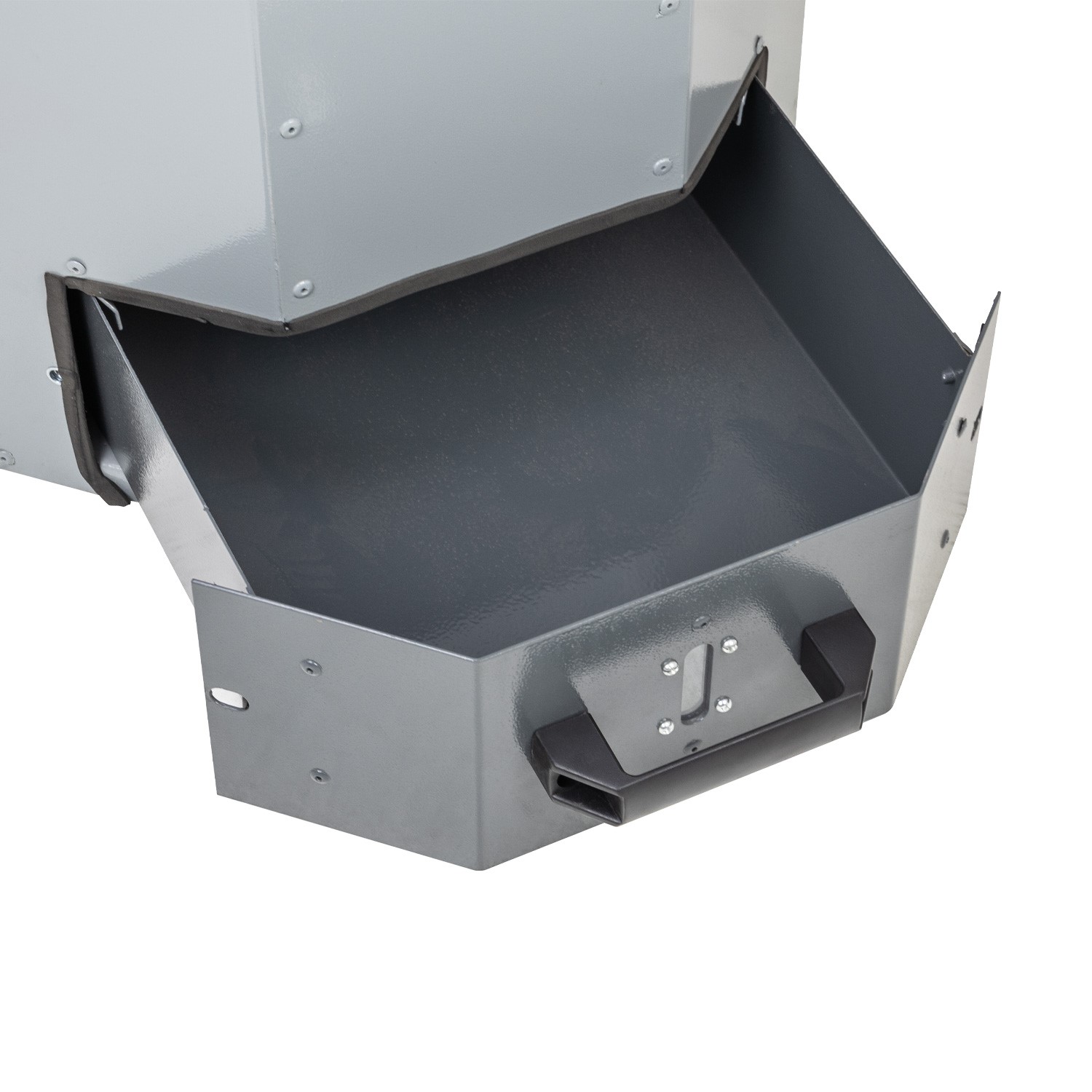

Easy-access collection tray
An easy-access materials collection tray is integrated into the base of the machine for easy metal waste disposal.

Technical Information

ITEM NO.	01996
Input Supply:	230v (13A)
Motor Power:	750w (1hp)
Max. Airflow:	1100mtr³/hr
Outlet Size:	2x 100mm
Collection Tray:	Yes
Filter Bag:	Yes
Net Weight:	31.00kg
Gross Weight:	34.00kg
Product Dimensions:	1160(H) x 550(W) x 515mm(D)
Packaged Dimensions:	1100(H) x 570(W) x 460mm(D)
