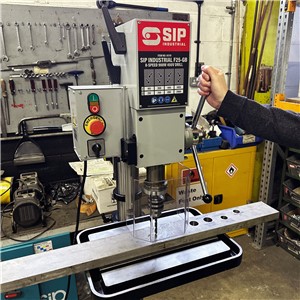

SIP F25-GB 8-Speed 900w Floor Pillar Drill

01719

Click on image to enlarge

SIP F25-GB 8-Speed 900w Floor Pillar Drill

01719

The SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalworking and fabrication workshops.

Featuring an 8-speed gear drive transmission, this drill delivers high torque output across a consistent spindle speed of 105rpm - 2900rpm for powerful and precise drilling up to 25mm max. diameter. This allows the operator to set the exact spindle speed needed to drill the material.

A gear drive transmission also eliminates belt slippage as no manual pulley speed adjustments are required. This allows for quicker and easier speed changes, which reduces downtime and increases workshop productivity.

KEY FEATURES

8-speed gear drive transmission with wide 105-2900rpm speed range
Easy-to-operate headstock levers for precise spindle speed setting
High torque output for consistent drilling power and max. ⌀ 25mm
Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
Large drill table with adjustable height and rotation for greater versatility
Heavy baseplate and central column to minimise vibration for stable drilling

SIP 2-Year Standard Silver Warranty* | Find out more

BUY NOW

Full Specification

The SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalworking and fabrication workshops.

Featuring an 8-speed gear drive transmission, this drill delivers high torque output across a consistent spindle speed of 105rpm - 2900rpm for powerful and precise drilling up to 25mm max. diameter. This allows the operator to set the exact spindle speed needed to drill the material.

A gear drive transmission also eliminates belt slippage as no manual pulley speed adjustments are required. This allows for quicker and easier speed changes, which reduces downtime and increases workshop productivity.

Applications & uses: Designed for professional metalworking and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures.

What's in the box?: 1x SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 3), 1x drill drift, 1x chuck key, 1x Y-type socket wrench and 2x handles for headstock and table.

SIP 2-Year Standard Silver Warranty* | Find out more

8-SPEED GEAR DRIVE POWER TRANSMISSION ENSURES ALL POWER IS TRANSFERRED FROM THE MOTOR TO SPINDLE FOR CONSISTENT POWER & HIGH TORQUE DRILLING EVEN AT LOWER SPEEDS

Using easy-to-operate levers on the headstock, operators gain full control of the drilling speed range (105rpm - 2900pm). This means the spindle speed can be precisely set to suit the material being drilled, resulting in a clean and accurate drill hole up to 25mm max. diameter.
A gear drive transmission also eliminates manual pulley speed changes, meaning operators can set-up jobs and perform changeovers more quickly, helping to reduce downtime and boost workshop productivity.
Fitted with a heavy-duty drill chuck and compatible with MT3 (Morse Taper 3), this heavy-duty configuration will withstand the forces and vibrations of professional drilling and maintain operator safety.
A depth stop is also fitted which eliminates guesswork and ensures consistent holes of the same depth are drilling during repetitive tasks.
Suitable for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron.

Full Specification 2

HEAVY-DUTY COMPONENTS IDEAL FOR CONTINUOUS USE IN PRODUCTION & ASSEMBLY ENVIRONMENTS

A thick central column and heavy baseplate help to minimise vibration for stability, helping to maintain precise and accurate drilling. The baseplate should be anchored to the ground to maximise stability.
A large height-adjustable drill press table (560mm L x 475mm D) offers added versatility for handling materials and assemblies of different thicknesses and heights. This can also rotate left to right offering additional clearance for drilling longer or awkwardly-shaped workpieces.
For further flexibility, the height-adjustable drill head offers further clearance for drilling and helps operators reach optimal height.

INTEGRATED ENHANCED SAFETY FEATURES DESIGNED TO ACTIVELY PROTECT OPERATORS FOR SECURE WORKING ENVIRONMENT

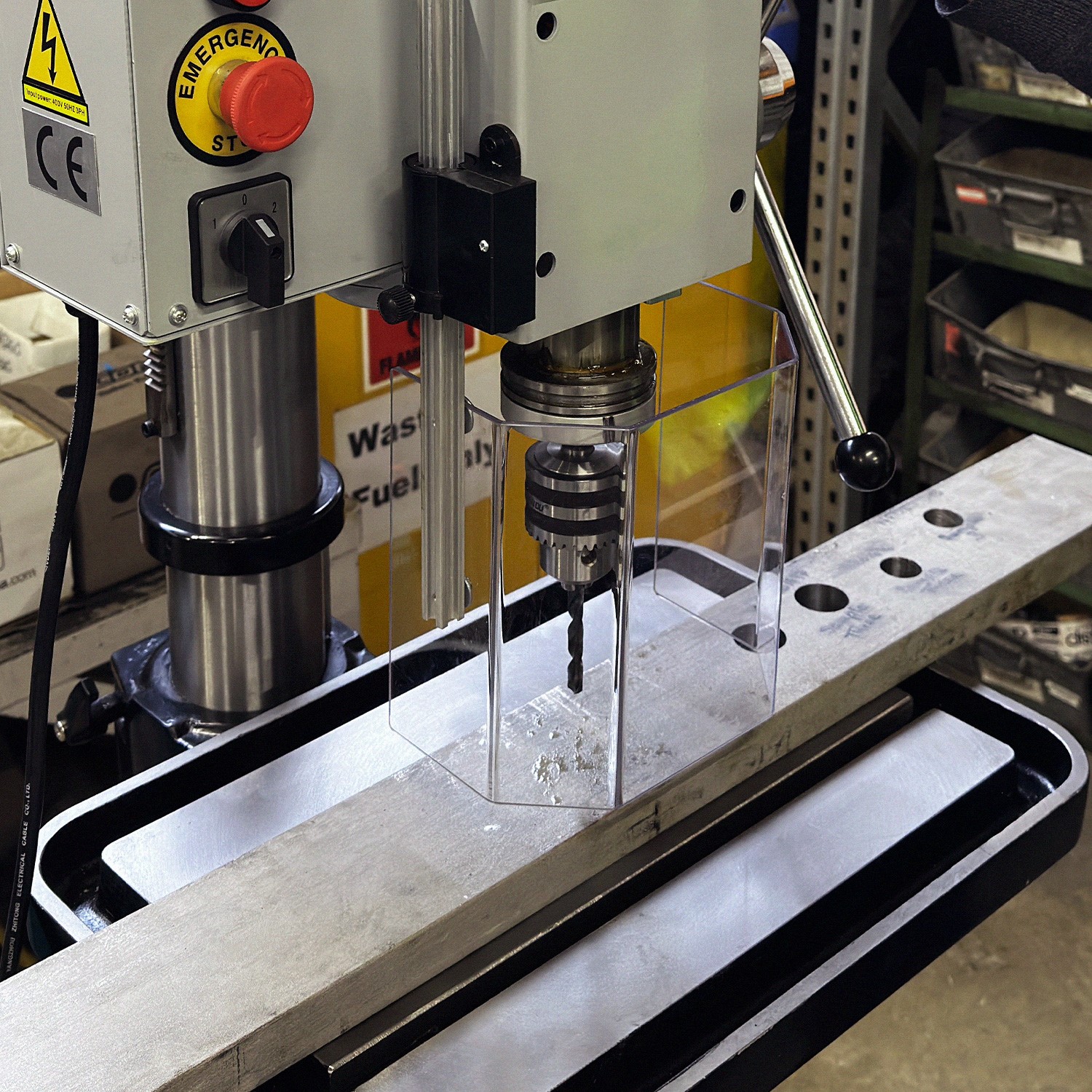

For added safety a protective chuck guard shields users from swarf and debris when drilling. This also disables the drill from operating when opened.
A low voltage (24v) control circuit minimises electric shock which limits harm to machine operators.
An interlocking safety switch prevents the drill from running when the headstock covers are opened.

COMPATIBLE WITH SIP PILLAR DRILL MACHINE VICES

Designed for securely clamping a workpiece to the drill press table to ensure accuracy and safety when drilling:
- 01727 SIP 6" Swivel & Tilt Machine Vice
- 01728 SIP 4" Swivel Machine Vice
- 01729 SIP 6" Swivel Machine Vice
- 01730 SIP 5.5" Quick Lock Machine Vice
- 01731 SIP 10" Quick Lock Machine Vice

Technical Information

ITEM NO.	01719
Input Supply:	400v (16A)
Motor Power:	900w
No. of Speeds:	8 speeds
Speed Range:	105rpm - 2900rpm
Max. Drilling Capacity:	25mm
Spindle Taper:	MT3
Table Size:	450mm x 320mm
Base Size:	405mm x 390mm
Column Diameter	⌀ 100mm
Swing:	608mm
Height:	1508mm
Spindle Travel:	125mm
Collar Diameter:	⌀ 130mm
Max. Distance:	905mm (spindle to table)
Net Weight:	190kg
Gross Weight:	235kg
Product Dimensions:	1508(H) x 560(W) x 570mm(D)
Packaged Dimensions:	710(H) x 560(W) x 1670mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
